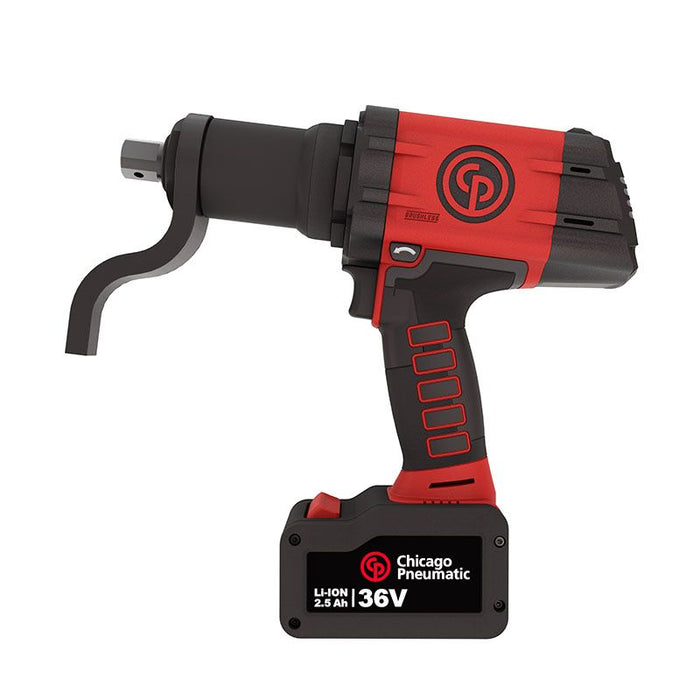

Chicago Pneumatic CP8603TC PACK 36V 2.5AH, 3/4" Battery Torque Wrench Torque Check, 20 Rpm Free Speed- 6151570410
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570410
Torque tightening and torque check from 70 Nm / 50 ft.lb to 325 Nm / 240 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. Product Features: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app Features- CPLinQ app for better control (only on C, CQ and TC versions) and traceability of your process (only on CQ and TC versions). Angle tightening (only on C, CQ and TC versions) Counting sequence to avoid missed tightenings (only on CQ and TC versions) Torque Check to control bolt loosening over time (only on TC version) Automatic reaction arm release to avoid tool to stay blocked on the application
-
- Sound Power (dba): <72
- Sound Power: 58.9 dB(A)
- Vibration (m/s²): <2.5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 363 mm
- Width (W): 77 mm
- A: 28 mm
- B: 54 mm
- C: 91 mm
- D: 111 mm
- E: 89 mm
- F: 34 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 17 mm
- Power weight ratio: 110 Nm/kg
- Weight: 2.9 kg
- Weight without reaction arm: 2.9 kg
- Weight with reaction arm: 3.3 kg
- Free Speed: 20 rpm
- Max torque in forward: 325 Nm
- Max torque reverse: 325 Nm
- Min torque in forward: 70 Nm
- Recommended Torque: 260 Nm
- Torque Control System: Shut-off-current co
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
