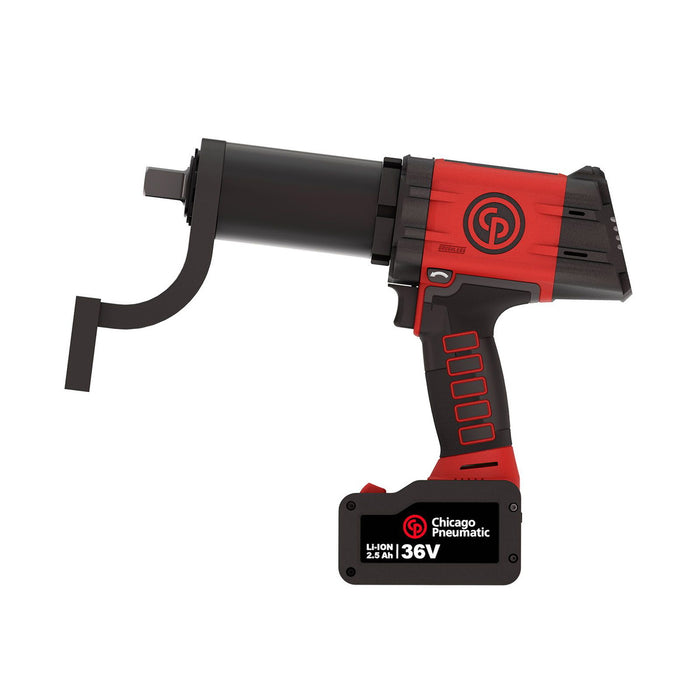

Chicago Pneumatic CP8613CQ PACK 36V 2.5AH, 3/4" Battery Torque Wrench Connected Quality, 350 Nm Torque, 10 Rpm Free Speed- 6151570020
Original price
€13,319.95
-
Original price
€13,319.95
Original price
€13,319.95
€13,319.95
-
€13,319.95
Current price
€13,319.95
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570020
Torque tightening from 300 Nm / 220 ft.lb to 1300 Nm / 960 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability.Country of origin is HU. Customs tariff is 85076000 Product Key Feature High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
-
- Sound Power (dba): <72
- Sound Power: 72 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2,5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 10 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 318 mm
- Width (W): 77 mm
- A: 32 mm
- B: 63 mm
- C: 130 mm
- D: 148 mm
- E: 89 mm
- F: 32 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 35 mm
- Power weight ratio: 350 Nm/kg
- Weight: 3.7 kg
- Weight without reaction arm: 3.7 kg
- Weight with reaction arm: 4.5 kg
- Max torque in forward: 1300 Nm
- Max torque reverse: 1300 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 1040 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
