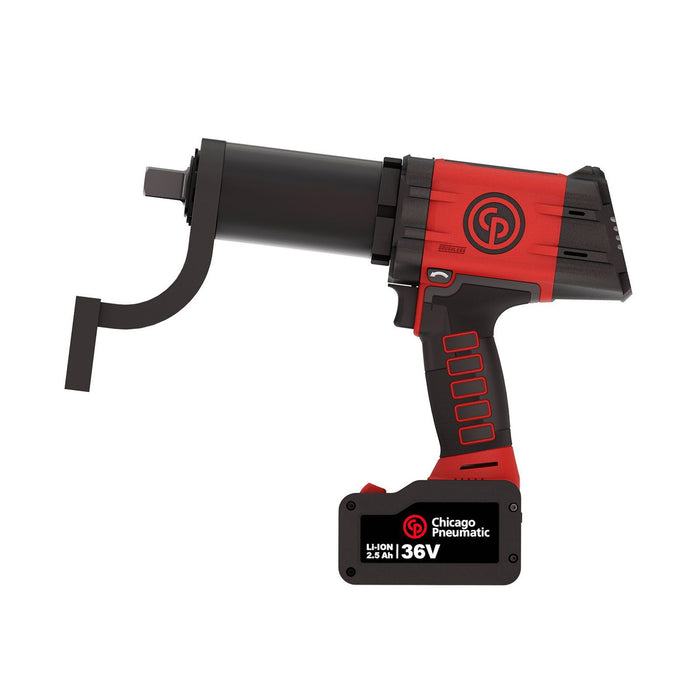

Chicago Pneumatic CP8613TC PACK 36V 2.5AH, 3/4" Battery Torque Wrench Torque Check, 350 Nm Torque, 10 Rpm Free Speed- 6151570670
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570670
CP86 is an innovative battery nutrunner designed for bolting applications in various industries such as energy, heavy equipment or maintenance. Combined with CPLinQ (only on Connected, Connected Quality and Torque Check versions), CP86 series is the first solution easy-to-handle and enabling to secure process quality while in the field. The different models cover a wide torque range with high precision and durability. Thanks to its lightweight battery, it also offers extended mobility in the field.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
-
- Sound Power (dba): <72
- Sound Power: 72 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2,5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 10 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 318 mm
- Width (W): 77 mm
- A: 32 mm
- B: 63 mm
- C: 130 mm
- D: 148 mm
- E: 89 mm
- F: 32 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 35 mm
- Power weight ratio: 350 Nm/kg
- Weight: 3.7 kg
- Weight without reaction arm: 3.7 kg
- Weight with reaction arm: 4.5 kg
- Max torque in forward: 1300 Nm
- Max torque reverse: 1300 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 1040 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
