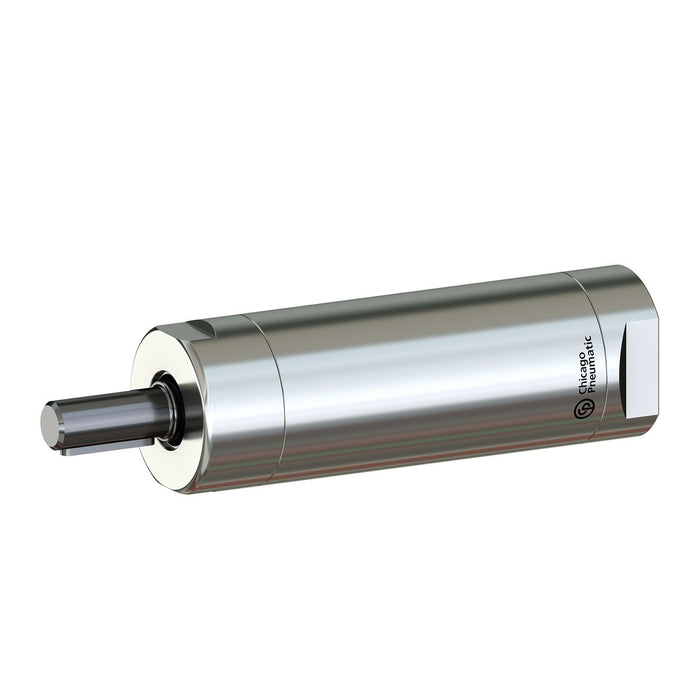

Chicago Pneumatic MR39-3800-KSL-ATEX, ATEX Reversible Stainless Steel Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478864
Delivering reliable rotary power in the most demanding and hazardous environments, the Chicago Pneumatic MR39-3800-KSL-ATEX is a reversible stainless steel air motor engineered for industries where safety certification is non-negotiable. Built to full ATEX standards, this compact pneumatic motor is purpose-designed for use in explosive atmospheres, making it an essential choice for oil and gas, chemical processing, and offshore applications where conventional air tools simply cannot be deployed. The stainless steel construction offers exceptional resistance to corrosion and chemical exposure, ensuring long service life even in the harshest conditions. With a maximum free speed of 3800 rpm and a maximum output power of 0.3 kW, this air motor delivers consistent, controllable performance across a wide range of light-duty rotary tasks. A minimum starting torque of 1.6 Nm ensures reliable startup under load, while the stall torque of 2.4 Nm provides the muscle needed to push through demanding cycles without stalling under pressure. The reversible operation adds operational flexibility, allowing direction changes without tool swaps, and the pneumatic motor design eliminates the risk of electrical ignition entirely. As a certified ATEX air motor from a trusted brand, this unit is ideally suited for driving mixing, agitating, conveying, or precision rotary processes in Zone 1 and Zone 2 classified hazardous locations where dependable, explosion-safe performance is paramount.Product Feature: Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max free speed range: 3800 rpm
- Max output power: 0.3 kW
- Minimum starting torque: 1.6 Nm
- Stall torque: 2.4 Nm
- Torque at max power: 1.2 Nm
- Air consumption at load: 7.9 l/s
- Air flow max power: 7.9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Stainless steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: c
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 0.95 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
