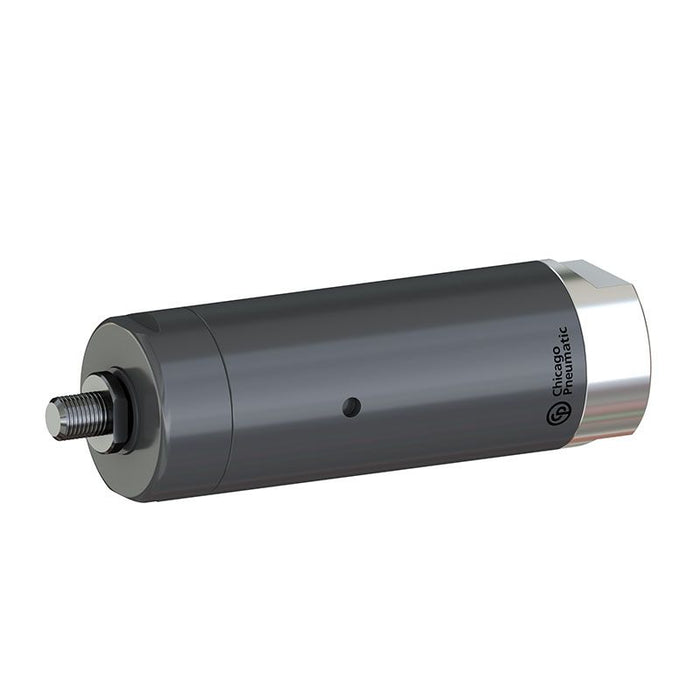

Chicago Pneumatic M3901-650-TL-ATEX, Reversible Air Motor, 400 W Power, 650 Rpm Free Speed- 2051481684
Original price
€1,724.95
-
Original price
€1,724.95
Original price
€1,724.95
€1,724.95
-
€1,724.95
Current price
€1,724.95
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481684
The standard pneumatic vane motors M3901-650-TL-ATEX is compact in design, light in weight, lubrication free, have Threaded shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 390 W (0.51 hp), with a maximum torque of 23 Nm (17 ft.lbs) and 650 rpm free speed Product Features: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation
-
- Index of protection (IP code): IP66
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Max free speed range: 650 rpm
- Minimum starting torque: 21 Nm
- Stall torque: 23 Nm
- Torque at max power: 11.5 Nm
- Max output power: 0.4 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 5/8-16 UNF
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 1.02 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
