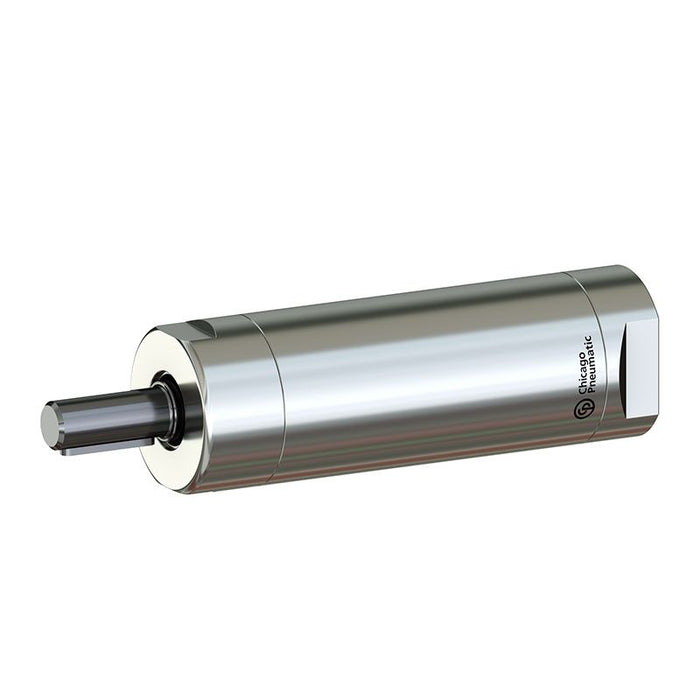

Chicago Pneumatic M39-1180-KSL-ATEX, Reversible Air Motor, 400 W Power, 1180 Rpm Free Speed- 2051478824
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478824
The stainless steel pneumatic vane motors M39-1180-KSL ATEX is compact in design, light in weight, have Keyed shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 390 W (0.52 hp), with a maximum torque of 12 (9.4 ft.lbs) and 1180 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85°C Db for dust. Product Features: Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation
-
- Max free speed range: 1180 rpm
- Max output power: 0.4 kW
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Minimum starting torque: 12 Nm
- Stall torque: 12.8 Nm
- Torque at max power: 6.4 Nm
- Main Material type: Stainless steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Keyed shaft
- Index of protection (IP code): IP68,IP66,IP69
- Output Spindle size: 12 mm
- Weight: 1.2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
