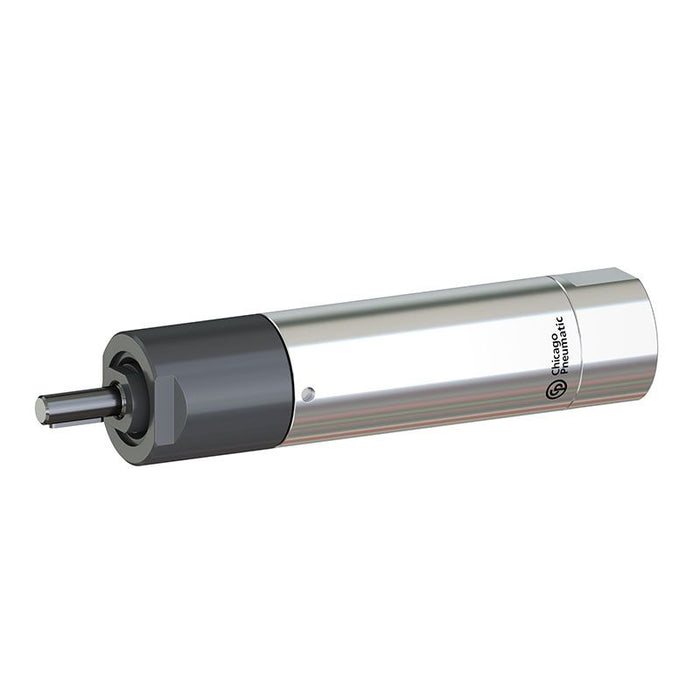

Chicago Pneumatic M16-2900-KL-ATEX, Reversible Air Motor, 200 W Power, 2900 Rpm Free Speed- 2051478944
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478944
The standard pneumatic vane motors M16-2900-KL-ATEX is compact in design, light in weight, have Keyed shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 160 W (0.21 hp), with a maximum torque of 2,3 Nm (1.7 ft.lbs) and 2900 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85°C Db for dust. Product Features: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation
-
- Index of protection (IP code): IP66
- Air consumption at load: 4 l/s
- Air flow max power: 4 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Max free speed range: 2900 rpm
- Minimum starting torque: 2 Nm
- Stall torque: 2.3 Nm
- Torque at max power: 1.15 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: a
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 6 mm
- Weight: 0.3 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
