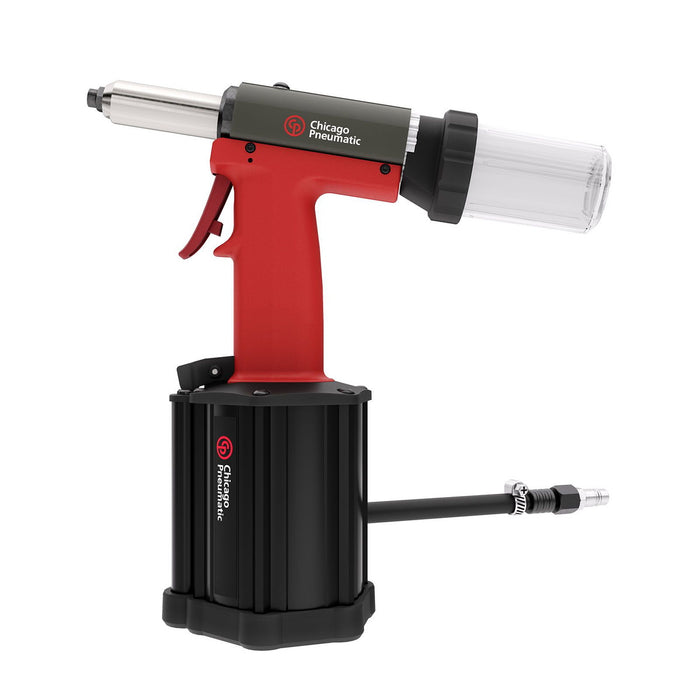

Chicago Pneumatic CP9887, Air Blind Riveter
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941098870
The Chicago Pneumatic CP9887 pneumatic riveter delivers exceptional pulling force and precision in a robust, ergonomically balanced package, making it the go-to solution for professional fastening applications across demanding industrial environments. Designed for operators who need consistent, repeatable results, this air-powered riveter combines raw power with practical handling to reduce operator fatigue and maximise productivity on the job. Generating an impressive 2100 kg of pulling force, the CP9887 tackles a wide range of rivet sizes and materials with authority, ensuring clean, secure fastenings every time. The generous 27 mm maximum stroke length accommodates varied rivet lengths, giving technicians the flexibility to work across multiple applications without tool changes. At just 2.5 kg, this Chicago Pneumatic riveter strikes an excellent balance between power and portability, allowing sustained use without the strain associated with heavier alternatives. The tool's well-proportioned dimensions - 325 mm in length, 350 mm in width, and 130 mm in height - provide a stable, controlled grip that translates directly into accurate placement and consistent pull. Built to Chicago Pneumatic's renowned standards of durability, it withstands the rigours of continuous workshop and production line use. The CP9887 pneumatic pull riveter is ideally suited for automotive bodywork, aerospace assembly, metal fabrication, and structural manufacturing where reliability, pulling power, and operator comfort are equally non-negotiable.Product Feature: Powerful with high setting forces€‹ Comfortable and safe with low vibration and kickback€‹ Cold insulating composite handle higher comfort€‹ Flexible air connection with 360° rotation option€‹ Robust with an industrial-grade aluminium alloy cylinder material€‹ About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 130 mm
- Length (L): 325 mm
- Width (W): 350 mm
- Max stroke length: 27 mm
- Pulling force: 2100 kg
- Weight: 2.5 kg
- Sound Power: 88.8 dB(A)
- Sound Pressure: 77.8 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration: 2.5 m/s²
- Main Material type: Aluminium, Composite over-sleeve
- Max rivet size (mm): 7.8
- Min rivet size (mm): 4.8
- Mouthpiece delivered: 10
- Pulling force: 4620 lb
- Rivet type: Blind
- Starting system: Trigger
- Air consumption at load: 4.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 10 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
