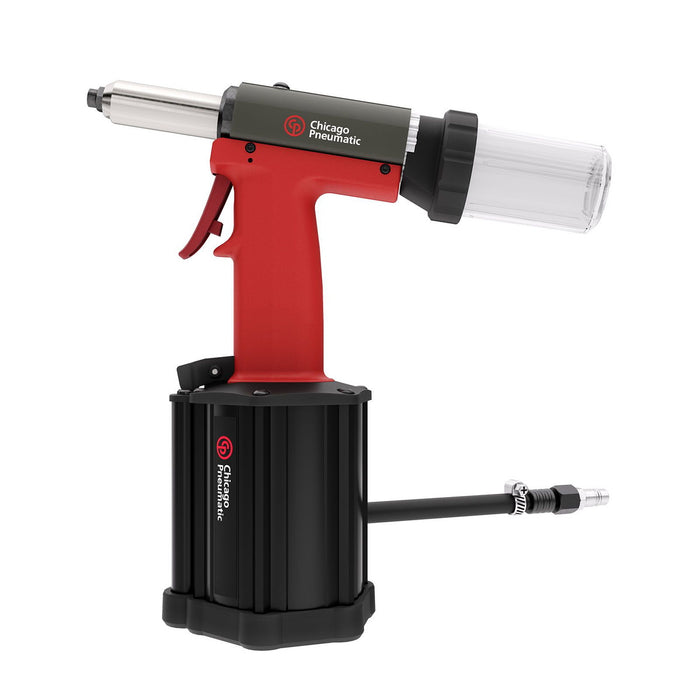

Chicago Pneumatic CP9886, Air Blind Riveter
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941098860
The Chicago Pneumatic CP9886 pneumatic riveter delivers professional-grade blind riveting performance in a compact, ergonomically balanced package that serious tradespeople can rely on shift after shift. Engineered specifically for 5mm steel blind rivets, this air-powered tool generates an impressive pulling force of 1260 kg, ensuring clean, consistent fastening results across demanding industrial and automotive assembly applications without operator fatigue. Weighing just 1.7 kg and measuring 277 mm in length, the CP9886 sits comfortably in the hand despite its robust output capabilities. The 290 mm width and 115 mm height reflect a well-considered design that balances reach and control, while the 19 mm maximum stroke length provides reliable rivet setting across a wide range of material thicknesses. These dimensions make the Chicago Pneumatic CP9886 pneumatic blind riveter particularly well-suited for working in confined spaces where larger tools simply cannot perform. Built to Chicago Pneumatic's exacting quality standards, this tool handles the repetitive demands of production line environments just as effectively as single-task workshop jobs. The air-powered mechanism reduces hand strain compared to manual alternatives, translating directly into faster cycle times and more uniform joints throughout extended use. Whether tackling bodywork repairs, HVAC ductwork, metal fabrication, or general assembly tasks, the CP9886 pneumatic riveter proves an indispensable addition to any professional toolkit where speed, strength, and precision are non-negotiable requirements.Product Feature: Powerful with high setting forces€‹ Comfortable and safe with low vibration and kickback€‹ Cold insulating composite handle higher comfort€‹ Flexible air connection with 360° rotation option€‹ Robust with an industrial-grade aluminium alloy cylinder material€‹ About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 115 mm
- Length (L): 277 mm
- Width (W): 290 mm
- Max stroke length: 19 mm
- Pulling force: 1260 kg
- Weight: 1.7 kg
- Sound Power: 88.8 dB(A)
- Sound Pressure: 77.8 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration: 2.5 m/s²
- Main Material type: Aluminium, Composite over-sleeve
- Max rivet size (mm): 5.0
- Min rivet size (mm): 3.2
- Mouthpiece delivered: 3
- Pulling force: 2770 lb
- Rivet type: Blind
- Starting system: Trigger
- Air consumption at load: 4 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 10 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
