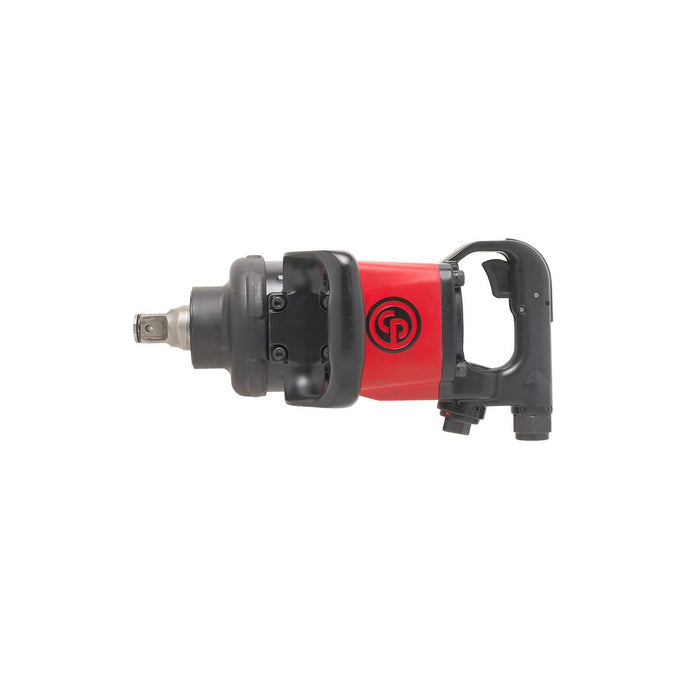

Chicago Pneumatic CP7782, 1" Impact wrench, 2000 Nm Torque, 5200 Rpm Free Speed – 8941077820
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077820
Designed for tire changing applications, this 1 impact wrench with its high torque of 1,920 ft.lbs / 2,600 Nm is highly recommended. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7782 series includes 3 models: 1 short anvil, 1 long anvil (6 anvil) and 1 long anvil (6 anvil) with spline retainer. Product Feature: 1,920 ft.lbs ( 2,600 Nm) of max torque in reverse position for high productivity Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability Power control regulators at the rear of the unit with 3 reverse and 3 forward positions Integrated protective cover on the clutch housing protects both applications tool Low vibration for improved comfort
-
- Max working torque fwd: 2000 Nm
- Max torque reverse: 2600 Nm
- Min working torque fwd: 500 Nm
- Torque limited: No
- Air consumption at load: 19 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 111 dB(A)
- Sound Pressure: 100 dB(A)
- Uncertainty vibration-K: 1.8 m/s²
- Vibration (m/s²): 7.8
- Vibration: 7.8 m/s²
- Free Speed: 5200 rpm
- Length (L): 370 mm
- Power weight ratio: 250 Nm/kg
- Weight: 10.1 kg
- Blow per minute: 500
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mecanism: Pinless rocking dog
- Main Material type: Aluminium
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
