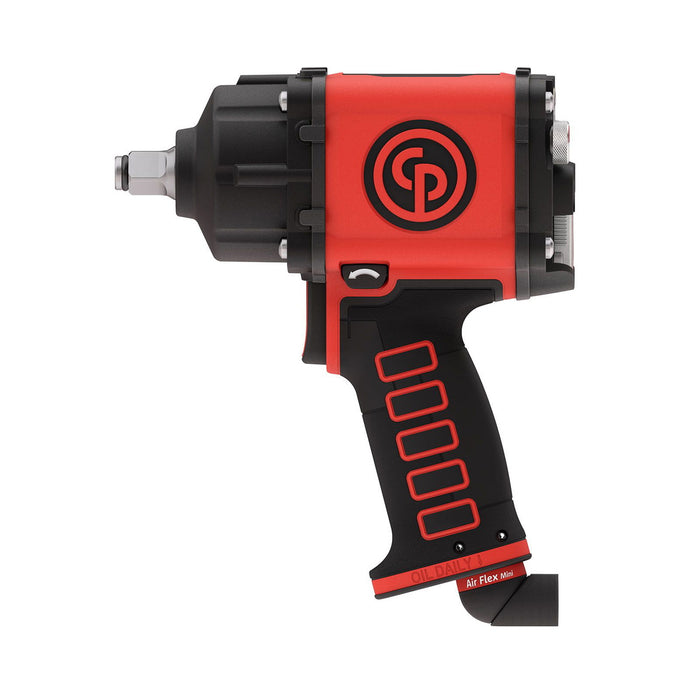

Chicago Pneumatic CP7755, 1/2'' Impact Wrench Short Anvil, 575 Nm Torque, 7700 Rpm Free Speed – 8941077551
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077551
The CP7755 Series 1/2 impact wrench allows operators to select the right power with 11 settings in forward on its innovative adjustable power control. The hose is no longer an issue thanks to the integrated pneumatic flex mini pneumatic inlet. The series delivers reverse torque up to 960 ft.lbs. Available in 4 models: 1/2 short anvil with pneumatic Flex mini, 1/2 long anvil with pneumatic Flex mini, 1/2 short anvil without pneumatic Flex mini and 1/2 long anvil without pneumatic Flex mini. Product Feature: Unique multi-position power control system: 11 setting options Patented Air Flex Mini air inlet: 360 swivel air inlet for freedom of movement Twin hammer impact mechanism, hard chromium aluminium cylinder, and bumpers all around the tool for high durability Due to its composite motor housing, the tool is compact and lightweight
-
- Max working torque fwd: 575 Nm
- Max torque reverse: 1300 Nm
- Min working torque fwd: 80 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 105 dB(A)
- Sound Pressure: 94 dB(A)
- Uncertainty vibration-K: 3.4 m/s²
- Free Speed: 7700 rpm
- Air consumption at free speed: 2.6 l/s
- Height (H): 205 mm
- Length (L): 169 mm
- Width (W): 76 mm
- Power weight ratio: 670 Nm/kg
- Side to Center: 38 mm
- Weight: 1.93 kg
- Blow per minute: 1200
- Body: Composite
- Handle type: Pistol
- Impact mecanism: Twin hammer
- Output drive size (in): 1/2
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
