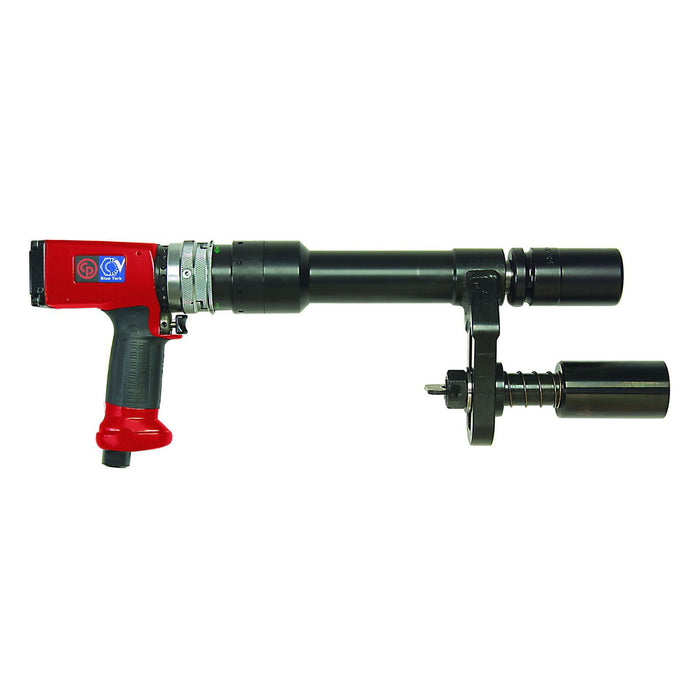

Chicago Pneumatic CP7600xC-R, 1" Shut Off Valve Bar Cup Pneumatic Nutrunner, 900 Nm Torque, 100 Rpm Free Speed – 8941076021
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941076021
The CP7600 BlueTork pneumatic nutrunner is intended for bus and truck maintenance companies. It offers a shut-off torque-controlled solution in safe condition to tighten nuts of trucks and buses, preventing over-tightening without impacting. The CP7600 series is available in 7 models: Cup reversible with 1 torque preset, cup reversible with 4 torque presets, extended cup reversible with 1 torque preset, extended cup reversible with 4 torque presets, blade non-reversible 1 torque preset, blade reversible 1 torque preset, blade reversible 4 torque presets.Product Feature: Air Shut-off torque control at preset torque Selection of up to 4 calibrated tightening torques with high accuracy Short version with CUPS reaction bar optional Low noise level (
-
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 450 Nm
- Torque Control System: Shut-off-pneumatic valve
- Adjustment: Key
- Handle type: Pistol
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: Standard Cup included
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Free Speed: 100 rpm
- Air consumption at free speed: 19 l/s
- Length (L): 460 mm
- Weight: 8.8 kg
- Sound Power: 90 dB(A)
- Sound Pressure: 79 dB(A)
- Vibration (m/s²): <2.5
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSPP
- Max dynamic air working pressure: 7 bar
- Min hose diam (5 m hose length): 13 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
