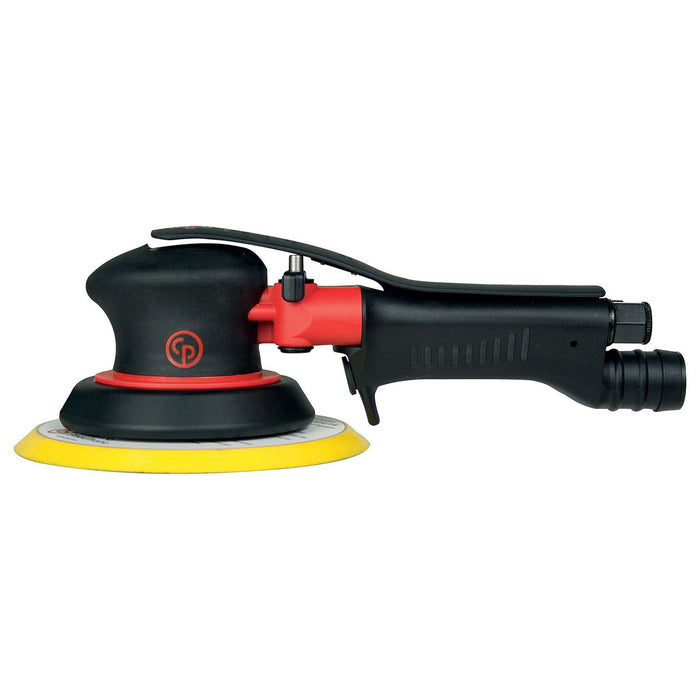

Chicago Pneumatic CP7255H, 6"(150mm) Orbital Sander, 210 W Power, 11000 Rpm Free Speed – 8941072554
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941072554
Designed for body shops applications like final sanding, finishing, and pre-polishing processe, this 3" (75mm) / 6" (150mm) pneumatic orbital sander (3/16" - 5mm orbit) series offers efficiency with its power of 0.3 hp (210 W) and great comfort with its palm shape in soft grip. This model belongs to the CP7225 series which is composed of 12 models: Non Vacuum (NV) model (Hook & Loop and PSA pad), Self Vacuum (SV) model (Hook & Loop and PSA pad),Central Vacuum (CV) model (Hook & Loop and PSA pad*) and Two hands ( CV Hook&Loop pad, NV Hook&Loop pad and NV PSA pad).Product Feature: Operator comfort with ergonomic palm shape in soft grip for perfect control Productivity increased with low vibration level and low noise level Powerful motor 0.3 hp (210 W) for vertical and horizontal applications 3"(75 mm) / 6"(150 mm) random orbital with palm sander, 3/16" (5mm) orbit for surface preparation from body filler to paint primer
-
- Max power: 210 W
- Free Speed: 11000 rpm
- Air consumption at free speed: 8 l/s
- Overspeed shut-off: No
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Uncertainty vibration-K: 2.4 m/s²
- Vibration: 5.4 m/s²
- Air consumption at load: 8.5 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Abrasive Pad Attachment: PSA
- Autobalancer: No
- Circular Abrasive Pad Size (in): 6
- Circular Abrasive Pad Size (mm): 150
- Exhaust: Rear
- Main Material type: Aluminium, Composite over-sleeve
- Orbit Size (in): 3/16
- Orbit Size (mm): 5
- Orbit type: Random
- Output Spindle Thread: 5/8-24 UNF
- Pad holes number: 0
- Pad type: Foam
- Rotative inlet: No
- Starting system: Lever
- Vacuum: Non vacuum
- Height (H): 96 mm
- Length (L): 285 mm
- Width (W): 150 mm
- Weight: 0.88 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
