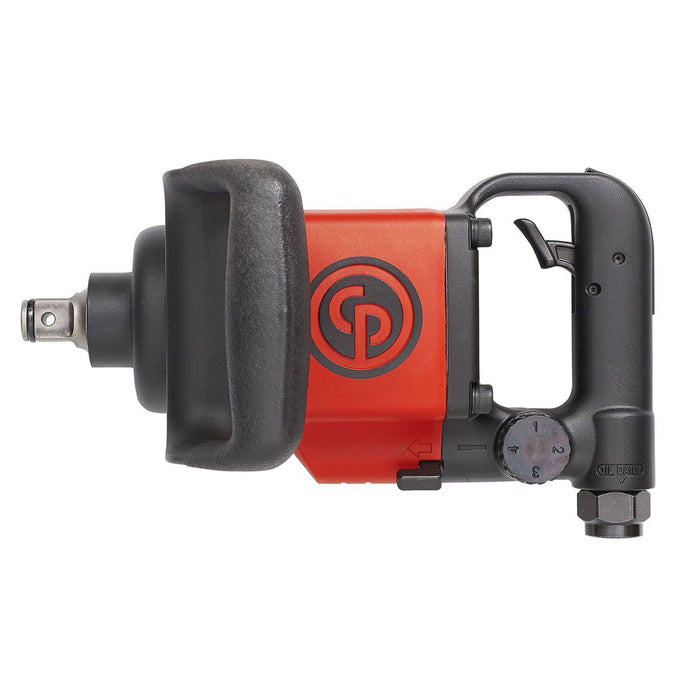

Chicago Pneumatic CP6763-D18D, 3/4''D-Handle Impact Wrench, 1450 Nm Torque, 6600 Rpm Free Speed – 6151590640
Original price
€1,032.95
-
Original price
€1,032.95
Original price
€1,032.95
€1,032.95
-
€1,032.95
Current price
€1,032.95
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590640
Our 3/4" -1" high torque impact wrench CP6763/CP6773 Series is designed for the toughest environments and bolting applications. The twin hammer clutch mechanism, with aluminum body and steel clutch housing delivers a high power-to-weight ratio for demanding industrial environments. The motor provides up to 1630, 1760 Nm/1200, 1300 ft.lbs of max reverse torque. Available in 4 models: The 3/4" and 1" pistol handles feature a compact design and allow easy access due to the short side-to-center position.
-
- Max working torque fwd: 1450 Nm
- Max torque reverse: 1760 Nm
- Min working torque fwd: 340 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Sound Pressure: 98 dB(A)
- Uncertainty vibration-K: 2.9 m/s²
- Free Speed: 6600 rpm
- Air consumption at free speed: 26 l/s
- Length (L): 290 mm
- Side to Center: 41 mm
- Weight: 6.6 kg
- Blow per minute: 730
- Body: Aluminum
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mecanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Dual
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
