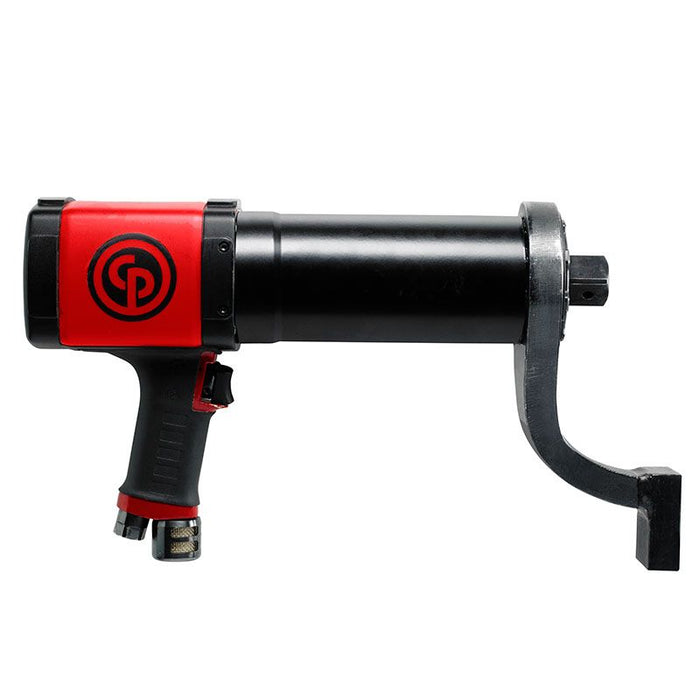

Chicago Pneumatic CP6641 + ATC PACK, 1" Stall Torque Nutrunners - ATC Pack, 10 Rpm Free Speed- 6151800140
Original price
€11,385.95
-
Original price
€11,385.95
Original price
€11,385.95
€11,385.95
-
€11,385.95
Current price
€11,385.95
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151800140
Designed for bolting applications in the oil gas, power generation and heavy industrial application areas, the CP66 nutrunner series bring you a high torque level while also being accurate with low vibration. Product Features: Compact tool for tight high torque application Industrial FRL ATC pack for high accuracy Vane type impact wrench air motor for high performance Lightweight, swiveling handle and one-finger reverse mode for high operator comfort
-
- Max torque in forward: 4100 Nm
- Max torque reverse: 4100 Nm
- Min torque in forward: 1000 Nm
- Torque Control System: Non shut-off-stall
- Accuracy (%): ±5 %
- Adjustment: Torque Chart
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Composite
- Output drive size: 1 in
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 70
- Starting system: Trigger
- Suspension option: Optional
- Height (H): 228 mm
- Length (L): 361 mm
- Width (W): 100 mm
- Side to Center: 40 mm
- Weight: 8.8 kg
- Weight without reaction arm: 8.8 kg
- Weight with reaction arm: 10.8 kg
- Sound Power: 101 dB(A)
- Sound Pressure: 90 dB(A)
- Vibration: 2.1 m/s²
- Vibration (m/s²): <2.5
- Free Speed: 10 rpm
- Air consumption at free speed: 31 l/s
- Air inlet thread size: 3/8 in
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 16 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
