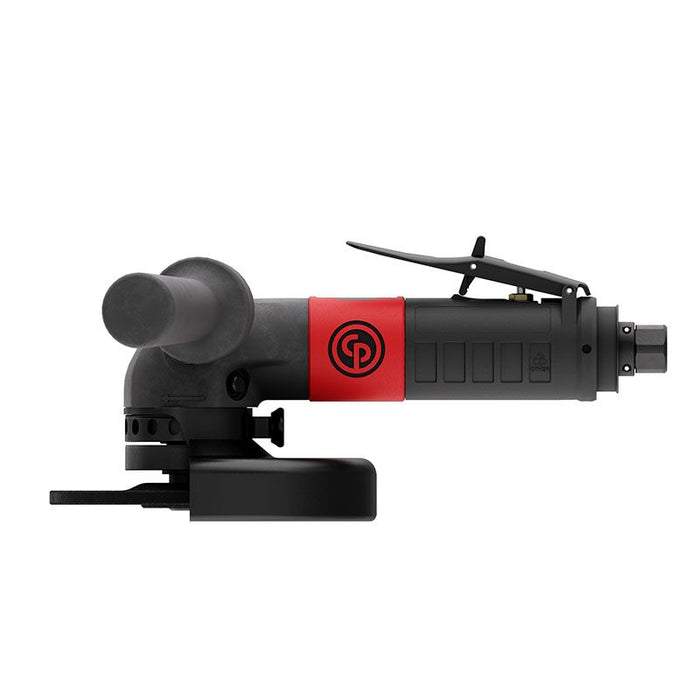

Chicago Pneumatic CP3650-100AB6V, Industrial Angle Grinder, 1641 W Power, 10000 Rpm Free Speed- 6151607910
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151607910
In heavy-duty industrial applications, the CP3650 series is a powerful and durable tool, combining quality and value. This grinder ensures sustainable productivity with a 1800W governed motor and extended maintenance intervals. With +25% improved robustness and exceptional bevel gear life, it prioritizes operator safety and comfort through enhanced ergonomics, while achieving a 7% carbon footprint reduction. The innovative CP3650 series delivers sustainable productivity without compromising on operator safety and wellbeing. Refer to the exploded view, for an overview of included accessories. Product Features: +25% improved robustness with an exceptional bevel gear life of 2500 hours Governed motor for better productivity and reduced vibration A more durable design with a protective rubber on angle head housing and a steel swiveling air inlet Spindle lock button for fast and easy abrasive disc change Improved ergonomics with an orientable vibration damping side handle and a swiveling air inlet
-
- Free Speed: 10000 rpm
- Air consumption at free speed: 15.6 l/sNl
- Sound Power: 90.4 dB(A)
- Sound Pressure: 101.4 dB(A)
- Uncertainty vibration-K: 1.1 m/s²
- Vibration: 5.3 m/s²
- Abrasive type: Type 27
- Autobalancer: Yes
- Guard max rotation: 360°
- Guard positions: 15
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 5/8-11 UNC
- Rotative guard type: Pull and Turn
- Spindle lock: Yes
- Starting system: Safety lever
- Swiveling guard: Keyless
- Wheel/Disc diameter (in): 6
- Wheel/Disc diameter (mm): 150
- Air consumption at load: 29 l/sNl
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Wheel inner diameter: 22.2 mm
- Height (H): 103 mm
- Length (L): 247.5 mm
- Width (W): 173.5 mm
- Max wheel thickness: 10.5 mm
- Side to Center: 34 mm
- Weight: 2.35 kg
- Max power: 1641 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
