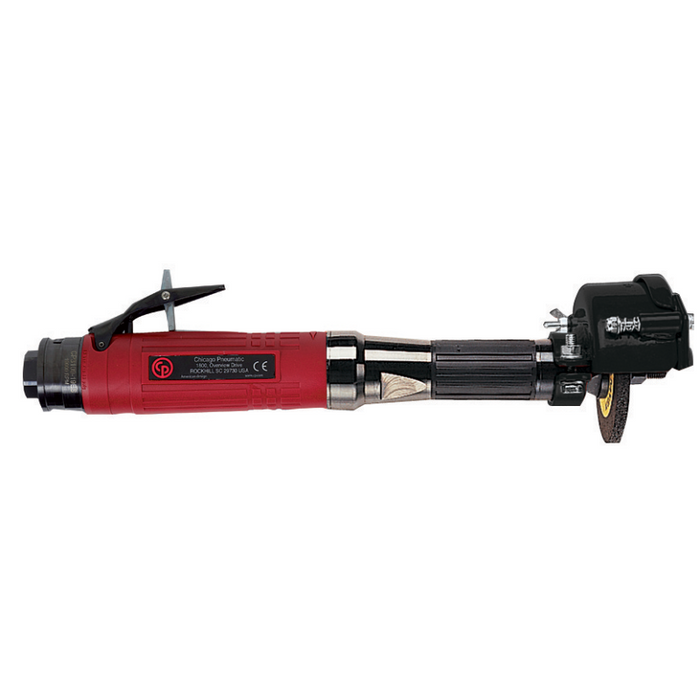

Chicago Pneumatic CP3119-123X, 3"(75 mm) Straight Grinder, 75 W Power, 12000 Rpm Free Speed- 6151606070
Original price
€1,062.95
-
Original price
€1,062.95
Original price
€1,062.95
€1,062.95
-
€1,062.95
Current price
€1,062.95
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151606070
The CP3119 straight wheel grinders range consists of 6 models, with max wheel capacity from 2.5x1/2x3/8 (63x13x9.52 mm) to 4x1/2x3/8 (100x13x9.52 mm) and a 1.2 hp (900 W) powerful motor. CP3019 straight Grinder range free speed is from 12,000 to 18,000 rotations per minute. Product Features: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever and 1.2 hp (900 W) governed motor for operator safety Long steel housing with an insulating composite over-housing for operator comfort Superior ergonomics with 2-handed handling
-
- Autobalancer: No
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 1/2-13 UNC
- Rotative guard type: Band
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Wheel/Disc diameter (in): 3
- Wheel/Disc diameter (mm): 75
- Wheel thickness (in): 25/32
- Wheel thickness (mm): 20
- Max power: 900 W
- Air consumption at load: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Length (L): 236 mm
- Weight: 1.7 kg
- Free Speed: 12000 rpm
- Air consumption at free speed: 7 l/s
- Overspeed shut-off: No
- Sound Power: 81 dB(A)
- Sound Pressure: 70 dB(A)
- Uncertainty vibration-K: 12 m/s²
- Vibration (m/s²): <2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
