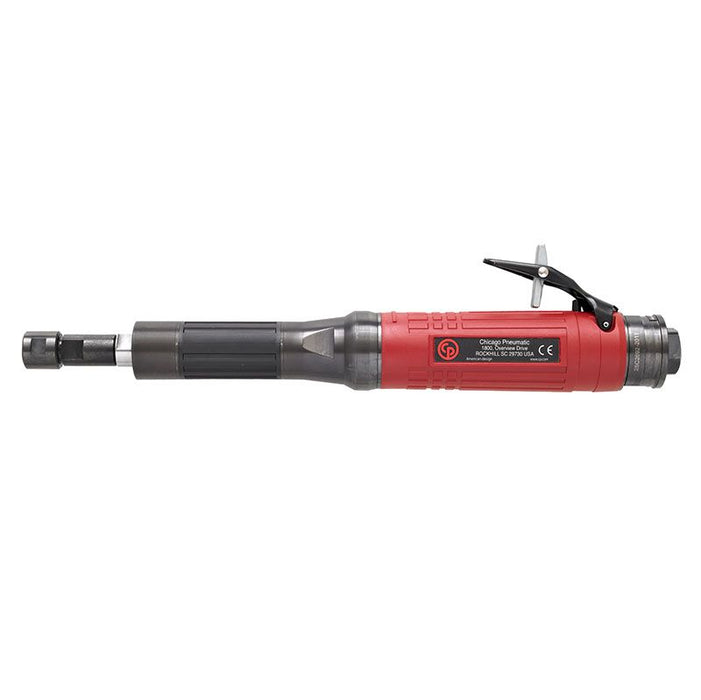

Chicago Pneumatic CP3109-28ES, 1/4"(6 mm) Die Grinder, 600 W Power, 28000 Rpm Free Speed- 6151602100
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151602100
The CP3109 Series - pneumatic Straight Die Grinders - meets the intensive needs of grinding, contouring, deburring, and cleaning with carbide burrs, mounted points, abrasive wheels, and flap wheels. It has a 6.35 mm (1/4) or CNOMO capacity collet with a very durable bevel gear and a powerful 0.8 hp (600 W) motor. The range consists of 18 models, straight or straight extended housing collet spindle with 4 free speed options from 15,000 to 28,000 rotations per minute. Product Features: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics Powerful 0.8hp (600 W) governed motor
-
- Length (L): 361 mm
- Weight: 1.3 kg
- Max power: 600 W
- Free Speed: 28000 rpm
- Air consumption at free speed: 16 l/s
- Air consumption at load: 15 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 96 dB(A)
- Sound Pressure: 85 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson serie 200 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
