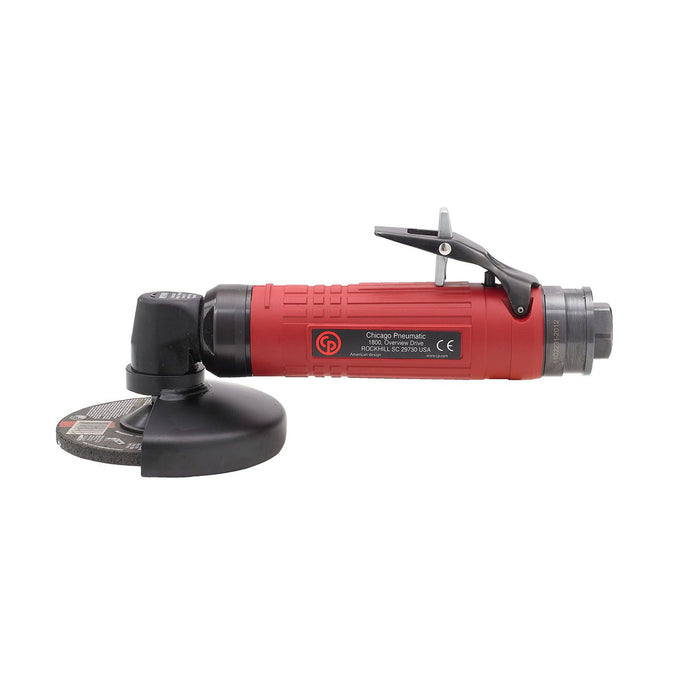

Chicago Pneumatic CP3109-13A4, 4" Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151607030
The Chicago Pneumatic CP3109-13A4 delivers the precision and raw power that demanding metalworking and fabrication professionals rely on every day. Engineered as a compact yet capable 4-inch pneumatic angle grinder, this tool brings 600 W of consistent air-driven performance to grinding, cutting, and surface preparation tasks where reliability cannot be compromised. Running at a free speed of 13,000 RPM, the CP3109-13A4 offers the kind of aggressive material removal that keeps production lines moving efficiently. The 100 mm disc capacity makes it highly manoeuvrable in tight spaces without sacrificing cutting power, and the air consumption of just 10 l/s at free speed ensures efficient use of compressed air supply across extended shifts. A full 360-degree guard rotation gives operators the flexibility to position the guard precisely for each application, enhancing both control and workplace safety. As a chicago pneumatic air grinder purpose-built for industrial environments, this model reflects the brand's long-standing commitment to ergonomic design and durable construction. Compared to a standard cp die grinder, the angle head configuration opens up a wider range of surface grinding and weld blending applications. The chicago pneumatic grinder range is trusted by fabricators, shipbuilders, and maintenance engineers worldwide, and the CP3109-13A4 is ideally suited to metal fabrication workshops, construction sites, and any environment where consistent high-speed grinding on steel, cast iron, or stainless surfaces is a daily requirement.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever Governed motor for operator safety Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics Standard or extended shaft About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 13000 rpm
- Air consumption at free speed: 10 l/s
- Auto balancer: No
- Guard max rotation: 360 °
- Guard positions: 0
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 3/8-24 UNF
- Rotative guard type: Band
- Spindle lock: No
- Starting system: Safety lever
- Swiveling guard: Key
- Wheel/Disc diameter (in): 4
- Wheel/Disc diameter (mm): 100
- Sound Power: 96 dB(A)
- Sound Pressure: 85 dB(A)
- Uncertainty vibration-K: 3 m/s²
- Vibration: 9.3 m/s²
- Air consumption at load: 15 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Length (L): 217 mm
- Weight: 1.2 kg
- Max power: 600 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
