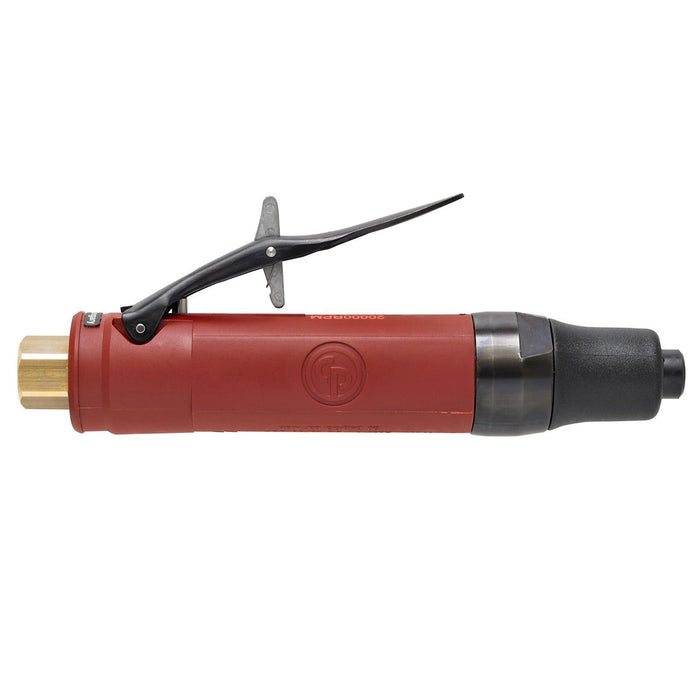

Chicago Pneumatic CP3019-18, 1/4"(6 mm) Die Grinder, 375 W Power, 18000 Rpm Free Speed- 6151600090
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151600090
The CP3019 Series - straight pneumatic Die Grinders, with a 1/4' (6.35 mm) collet capacity or CNOMO collet capacity consists of 17 models with 5 free speed options from 12,000 to 40,000 rpm and a straight or straight extended housing collet spindle. The powerful motor offers 0.5 hp (375 W) for optimum productivity in heavy applications such as deburring, die contouring, and light chamfering. A compact design and a simplified safety lever characterize the range.Country of origin is HU. Customs tariff is 84671110 Product Key Feature Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Powerful 0.5 hp (375 W) governed motor ensures safety Compact body with an insulating composite over-housing for operator comfort and superior ergonomics
-
- Length (L): 169 mm
- Weight: 0.38 kg
- Max power: 375 W
- Free Speed: 18000 rpm
- Air consumption at free speed: 2.5 l/s
- Air consumption at load: 7.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.31 in
- Min hose diam (5 m hose length): 8 mm
- Sound Power: 86.8 dB(A)
- Sound Pressure: 75.8 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson serie 300 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
