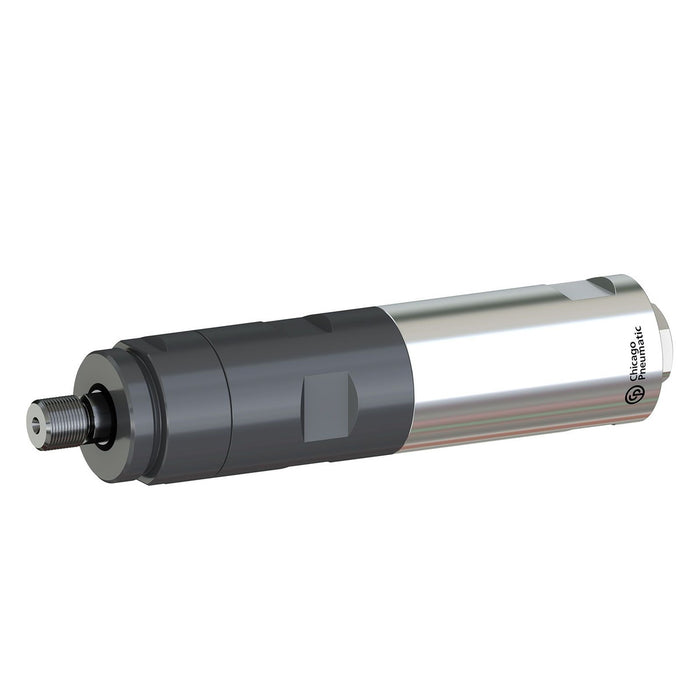

Chicago Pneumatic M84-2400-T-ATEX, Non-Reversible Vane Air Motor, 840 W Power, 2400 Rpm Free Speed- 2051481444
Original price
€2,425.95
-
Original price
€2,425.95
Original price
€2,425.95
€2,425.95
-
€2,425.95
Current price
€2,425.95
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481444
The standard pneumatic vane motors M84-2400-T-ATEX is compact in design, light in weight, have Threaded shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This non-reversible air motor delivers a maximum power of 840 W (1.13 hp), with a maximum torque of 12,6 Nm (9.3 ft.lbs) and 2400 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T4 Gb for gas and Ex II 2 D Ex h IIIC T110°C Db for dustCountry of origin is HU. Customs tariff is 84123900
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 2400 rpm
- Minimum starting torque: 10 Nm
- Stall torque: 12.6 Nm
- Torque at max power: 6.3 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: No
- Output Spindle Thread: 1/2-13 UNC
- Rotation drive: Clockwise
- Shaft loading code: e
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 1.2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
