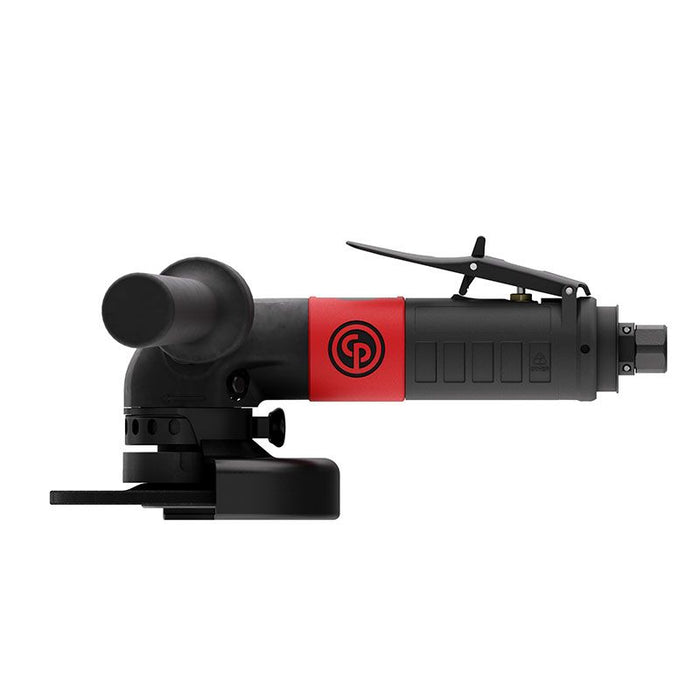

Chicago Pneumatic CP3650-120AB5V, Industrial Angle Grinder, 1612 W Power, 12000 Rpm Free Speed – 6151607900
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151607900
In heavy-duty industrial applications, the CP3650 series is a powerful and durable tool, combining quality and value. This grinder ensures sustainable productivity with a 1800W governed motor and extended maintenance intervals. With +25% improved robustness and exceptional bevel gear life, it prioritizes operator safety and comfort through enhanced ergonomics, while achieving a 7% carbon footprint reduction. The innovative CP3650 series delivers sustainable productivity without compromising on operator safety and wellbeing. Refer to the exploded view, for an overview of included accessories. Product Features: +25% improved robustness with an exceptional bevel gear life of 2500 hours Governed motor for better productivity and reduced vibration A more durable design with a protective rubber on angle head housing and a steel swiveling air inlet Spindle lock button for fast and easy abrasive disc change Improved ergonomics with an orientable vibration damping side handle and a swiveling air inlet
-
- Free Speed: 12000 rpm
- Air consumption at free speed (Normo): 19.4 l/sNl
- Sound Power: 92.8 dB(A)
- Sound Pressure: 103.8 dB(A)
- Uncertainty vibration-K: 1.2 m/s²
- Vibration: 5.9 m/s²
- Abrasive type: Type 27, Type 41
- Autobalancer: Yes
- Guard max rotation: 360°
- Guard positions: 15
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 5/8-11 UNC
- Rotative guard type: Pull and Turn
- Spindle lock: Yes
- Starting system: Safety lever
- Swiveling guard: Keyless
- Wheel/Disc diameter (in): 5
- Wheel/Disc diameter (mm): 125
- Air consumption at load (Normo): 29.5 l/sNl
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Wheel inner diameter: 22.2 mm
- Height (H): 102 mm
- Length (L): 247.5 mm
- Width (W): 140 mm
- Max wheel thickness: 10 mm
- Side to Center: 34 mm
- Weight: 2.25 kg
- Max power: 1612 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
