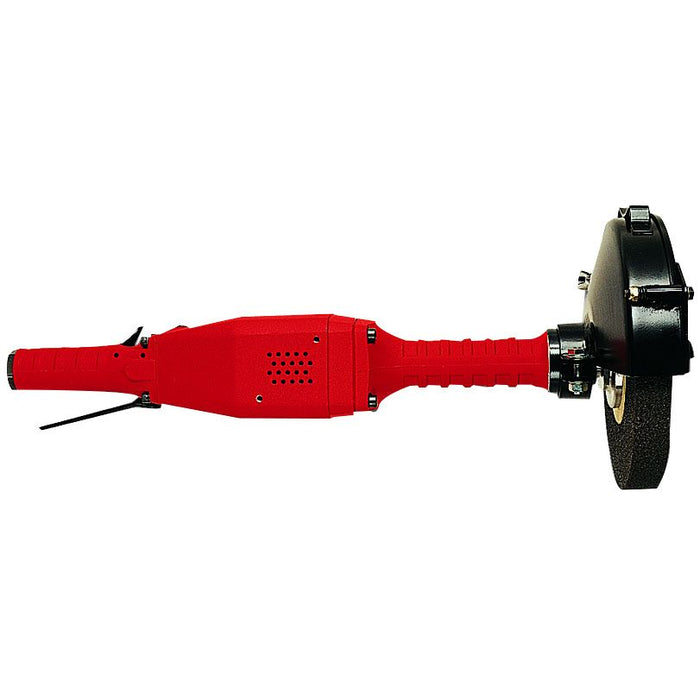

Chicago Pneumatic CP3249-GABSUDE, 8"(200 mm) Straight Grinder, 2400 W Power, 4500 Rpm Free Speed – 6151606190
Original price
€2,861.95
-
Original price
€2,861.95
Original price
€2,861.95
€2,861.95
-
€2,861.95
Current price
€2,861.95
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151606190
The CP3249 straight wheel grinders range is defined by 4 models, with max wheel capacity from 6x1x5/8' (150x25x15.9 mm) to 8x1x5/8' (200x25x15.9 mm) and a 3.2 hp (2400 W) or 3.4 hp (2700 W) powerful motor. CP3249 Straight Wheel Grinder range free speed is from 4,500 to 6,000 rotations per minute. CP3249-GABSUD and GABSYG are dedicated for ANSI NA market CP3249-GABSUDE and GABSYGE are for CE market.Product Feature: Highest durability in demanding applications with up to 2,000 hours maintenance intervals Double ergonomic action safety lever facilitates single-handed engagement and helps reduce risk of accidental start up Overspeed prevention device included, ANSI compliant for NA markets, 6" (150 mm) wheel capacity
-
- Autobalancer: No
- Exhaust: Side
- Governor type: Weight
- Main Material type: Aluminium
- Output Spindle Thread: 5/8-11 UNC
- Rotative guard type: Band
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Wheel/Disc diameter (in): 8
- Wheel/Disc diameter (mm): 200
- Wheel thickness (in): 1
- Wheel thickness (mm): 25
- Max power: 2400 W
- Air consumption at load: 33 l/s
- Air inlet thread size (in): 1/2
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.63 in
- Min hose diam (5 m hose length): 15 mm
- Free Speed: 4500 rpm
- Air consumption at free speed: 8 l/s
- Overspeed shut-off: No
- Length (L): 492 mm
- Weight: 6.3 kg
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Vibration (m/s²): < 2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
