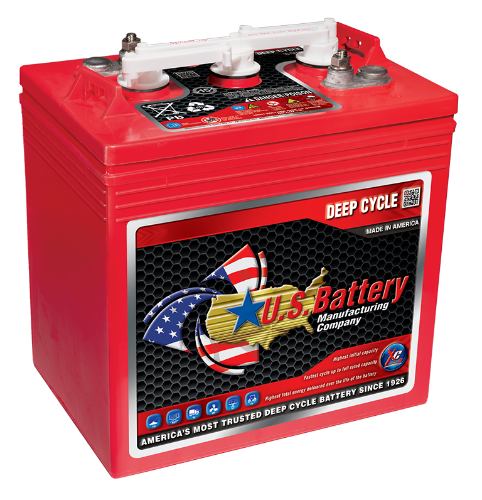

US 2200DT XC2 Deep cycle Monobloc Battery 6V 232Ah, 1 Year Warranty

Original price £257.95 - Original price £257.95
Original price
£257.95
£257.95 - £257.95
Current price £257.95
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: US2200DT

    Deep cycle applications such as golf carts, floor cleaning equipment, and powered access platforms demand batteries engineered to sustain repeated discharge and recharge cycles without capacity degradation. The U.S. Battery US2200DT is a 6V 232Ah (C20) flooded lead acid monobloc battery designed specifically for these high-demand, multi-shift environments where consistent energy delivery is non-negotiable. U.S. Battery Manufacturing Company is recognised as the world's leading manufacturer of deep cycle flooded lead acid batteries. Produced in the United States, the US2200DT is part of the XC2 Monobloc range - Product Group 4300 - purpose-built to deliver dependable cycle life and stable voltage output across the intended application range. The US2200DT measures 260mm (L) x- 181mm (W) x- 286mm (H inc. terminal) and weighs 28.72kg. It is fitted with DT terminals and carries polarity designation 6V0. Cross-references include 6FSGC-HC, 6-LC-GC2-HC, and T105. Suitability for start-stop applications is not confirmed - refer to the product label." This product is available in a range of capacities and terminal configurations; see variants including US2200 and US125DT for alternative specifications. "Supplied with a 1-year manufacturer warranty. Delivery: pallet shipment, typically 3-5 working days within UK mainland. Contact MachineRefurb for delivery quote. . US Battery Manufacturing Company is recognised as the world-„¢s leading manufacturer of deep cycle batteries. Their deep cycle flooded lead acid batteries are American made and specifically designed for golf carts, floor cleaning machines, access and lift applications, marine, RV, solar power and any other applications requiring high quality deep cycle batteries. All US Batteries are hand built for performance. They use very thick grids and plates to allow for optimum amp hour capacity and long life cycles for their batteries. Their high performance and long life cycle has ensured that US Battery is one of the world-„¢s best known and most respected manufacturers of deep cycle batteries. What you get with a US Battery: A higher peak capacity An increased initial capacity An improved energy density An enhanced re-charge ability Fortified plate construction An improved life cycle Dependability and reliability Key Feature: Backed by 1-year warranty for reliable use and dependable performance. Product Group: 4300, US BATTERY MONOBLOC, purpose-built for dependable performance in the intended application. Engineered as a Lead acid battery, delivering consistent, reliable operation in daily use. Manufactured by US Battery, a trusted name in automotive batteries, known for dependable quality. Weighs 28.7 kg (63.3 lb) balancing power and manageability for easier installation and handling. OEM-style fitment supports straightforward replacement and proper mounting. 6V system compatible with standard vehicle electrical requirements. Compatibility: Designed for Industrial applications, balancing dependable starting with steady power delivery. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Lead acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.

    • Brand: U.S. Battery
    • Voltage: 6V
    • Capacity AH (C20): 232Ah
    • Cold Cranking Amps (EN):
    • L x- W x- H: 260mm x- 181mm x- 286mm
    • Warranty period: 1 Year
    • Weight (Kg): 28.72
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 260
    • Width (mm): 181
    • Height Inc. Terminal (mm): 286
    • Terminal Placement: 6V0
    • Terminal Type: DT
    • Hold Down:
    • Case Size:
    • ETN Number:
    • TTNR:
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the voltage and capacity of the US2200DT?
ANS- The US2200DT is a 6V battery with a rated capacity of 232Ah at the C20 discharge rate, suitable for sustained deep cycle applications.

Q2- What type of battery technology does the US2200DT use?
ANS- It uses flooded lead acid (wet cell) technology in a deep cycle monobloc configuration, engineered for repeated discharge and recharge cycles in demanding commercial applications.

Q3- What terminal type is fitted to the US2200DT?
ANS- The US2200DT is fitted with DT (dual terminal) posts. Polarity designation is 6V0.

Q4- What are the physical dimensions and weight of the US2200DT?
ANS- The battery measures 260mm (length) — 181mm (width) — 286mm (height including terminal) and weighs 28.72kg.

Q5- Which batteries does the US2200DT cross-reference or replace?
ANS- The US2200DT is a recognised equivalent or replacement for batteries referenced as 6FSGC-HC, 6-LC-GC2-HC, and T105. Always verify dimensional and electrical compatibility before fitment.

Q6- Is the US2200DT suitable for start-stop vehicle applications?
ANS- Suitability for start-stop applications has not been confirmed for this product. Please refer to the product label or contact MachineRefurb for clarification before use in such applications.

Q7- What applications is the US2200DT designed for?
ANS- The US2200DT is designed for deep cycle applications including golf carts, floor cleaning machines, powered access platforms, and similar commercial equipment requiring reliable cyclic energy delivery.

Q8- What warranty is provided with the US2200DT?
ANS- The US2200DT is covered by a 1-year manufacturer warranty, providing assurance of product quality and performance under normal operating conditions.

Q9- Are other capacities or terminal configurations available in this range?
ANS- Yes. Related variants include the US2200 (alternative terminal), US125, US125DT, US145, US2000, US2000DT, US250, US250HC, US305, and US305HC. Contact MachineRefurb to confirm the correct specification for your application.

Q10- How is the US2200DT delivered and what is the returns policy?
ANS- You may cancel your purchase within 14 days of delivery without providing a reason. To be eligible for a return, the item must be unused, in its original packaging and in a resellable condition. Proof of purchase is required.
Please note returns are not accepted for personalised or customised items, sealed goods that have been unsealed, or items that cannot be returned for hygiene reasons.
To arrange a return, contact us at customer@machinerefurb.com with your order number, reason for return and photos if applicable. Return postage is the customer's responsibility unless the item is defective, damaged or incorrect.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 1-year warranty from the date of purchase.
