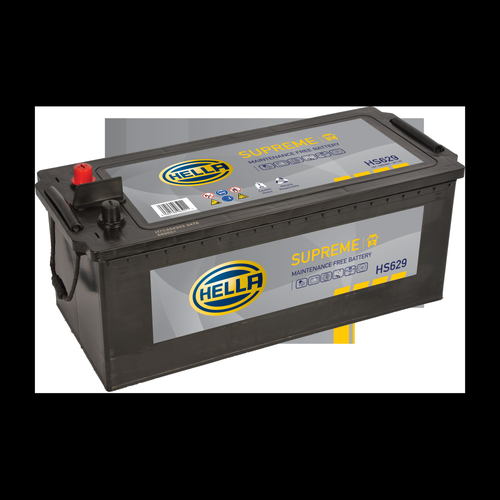

Hella HS629 Sealed Supreme Commercial Vehicle Battery 12V 180Ah Type 629UR, 2 Years Warranty

Original price £188.46 - Original price £188.46
Original price
£188.46
£188.46 - £188.46
Current price £188.46
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: HS629

    Heavy-duty commercial vehicles demand a battery capable of sustaining reliable cold-start performance across demanding duty cycles and adverse operating conditions. The Hella HS629 Sealed Supreme Commercial Vehicle Battery delivers 1000A CCA and 180Ah capacity in a robust lead-acid construction engineered specifically for fleet applications - from long-distance coaches and trucks through to fire engines, combine harvesters, and construction machinery. The HS629 operates at 12V. Hella's commercial vehicle battery range is purpose-built to power fleets where dependability is non-negotiable. Each unit is manufactured to the exacting standards Hella applies across its automotive and commercial product lines, ensuring consistent output and resistance to vibration and deep cycling typical in heavy-duty use." The HS629 carries the Type 629UR cross-reference and is housed in a Case B enclosure measuring 513mm x- 223mm - 223mm (L x- W x- H). It features Type 1 terminals with Terminal Placement 3 polarity and Hold-Down type B00. Total weight is 46.4kg. Start-stop compatibility is not confirmed - refer to the product label before fitting to start-stop equipped vehicles. "This battery is also available in alternative capacities: HS612 (PID000222530) and HS632 (PID000222532), allowing selection to match precise fleet requirements. Backed by a 2-year manufacturer's warranty, providing assurance of build quality and long-term performance in the intended application. Delivery: pallet shipment, typically 3-5 working days within UK mainland. Contact MachineRefurb for delivery quote. . Whatever the application, Hella commercial vehicle batteries are built specifically to power fleets. From trucks to vans, long distance coaches, buses, fire engines, combine harvesters and construction vehicles our unrivalled range will help get the job done with less down time which in turn reduces costs. Key Feature: Backed by 2-year warranty for reliable use and dependable performance. Product Group: 2801, HELLA BATTERY, Hella Lead acid battery, purpose-built for dependable performance in the intended application. Engineered as a Flooded Lead-Acid battery, delivering consistent, reliable operation in daily use. Manufactured by Hella, a trusted name known for dependable quality. Weighs 46.4kg, balancing power and manageability for easier installation and handling. . OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatibility with standard vehicle electrical requirements. Compatibility: Suited for marine and RV applications, supporting engine cranking and house loads for regular use. Uses: Provides robust cranking power for marine/RV engines and onboard systems. Supports house loads and accessories with stable reserve capacity. Handles intermittent use and storage with dependable restarts. Designed for multi-€˜stop trips and auxiliary power needs afloat or on the road. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Hella
    • Voltage: 12V
    • Capacity AH (C20): 180Ah
    • Cold Cranking Amps (EN): 1000A
    • L x- W x- H: 513mm x- 223mm x- 223mm
    • Warranty period: 2 Years
    • Weight (Kg): 46.4
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 513
    • Width (mm): 223
    • Height Inc. Terminal (mm): 223
    • Terminal Placement: 3
    • Terminal Type: 1
    • Hold Down: B00
    • Case Size: B
    • ETN Number:
    • TTNR:
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the cold cranking amp (CCA) rating of the Hella HS629?
ANS- The Hella HS629 is rated at 1000A CCA measured to the EN standard, making it suited to high-demand cold-start applications in heavy commercial vehicles.

Q2- What are the dimensions of the Hella HS629 battery?
ANS- The HS629 measures 513mm in length, 223mm in width, and 223mm in height including the terminal. Always verify these dimensions against your battery tray before fitting.

Q3- What is the voltage and capacity of the HS629?
ANS- The HS629 operates at 12V with a rated capacity of 180Ah (C20). It is designed for commercial vehicle applications requiring sustained high-capacity output.

Q4- What is the terminal type and polarity configuration of the HS629?
ANS- The HS629 uses Type 1 terminals with Terminal Placement 3 polarity and Hold-Down type B00. Confirm these specifications match your vehicle's battery mounting and cabling before purchase.

Q5- Is the Hella HS629 compatible with start-stop vehicles?
ANS- Start-stop compatibility for the HS629 is not confirmed. Please refer to the product label on the battery itself and consult your vehicle manufacturer's specifications before fitting to any start-stop equipped vehicle.

Q6- What is the cross-reference number for the Hella HS629?
ANS- The Hella HS629 cross-references to Type 629UR. This designation can be used to verify fitment compatibility against OEM or alternative supplier references.

Q7- What case type does the HS629 use, and what hold-down type is required?
ANS- The HS629 uses a Case B enclosure with Hold-Down type B00. Ensure your vehicle's battery tray and securing hardware are compatible with these specifications.

Q8- How much does the Hella HS629 weigh?
ANS- The HS629 has a total weight of 46.4kg. Due to its size and weight, appropriate lifting equipment and safety precautions should be used during installation.

Q9- Are there alternative sizes available in the Hella Supreme commercial vehicle battery range?
ANS- Yes. The Hella Supreme CV range includes the HS612 (PID000222530) and HS632 (PID000222532), offering alternative capacities for different commercial vehicle requirements.

Q10- How is the Hella HS629 delivered, and what is the returns policy?
ANS- You may cancel your purchase within 14 days of delivery without providing a reason. To be eligible for a return, the item must be unused, in its original packaging and in a resellable condition. Proof of purchase is required.
Please note returns are not accepted for personalised or customised items, sealed goods that have been unsealed, or items that cannot be returned for hygiene reasons.
To arrange a return, contact us at customer@machinerefurb.com with your order number, reason for return and photos if applicable. Return postage is the customer's responsibility unless the item is defective, damaged or incorrect.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 2-year warranty from the date of purchase.
