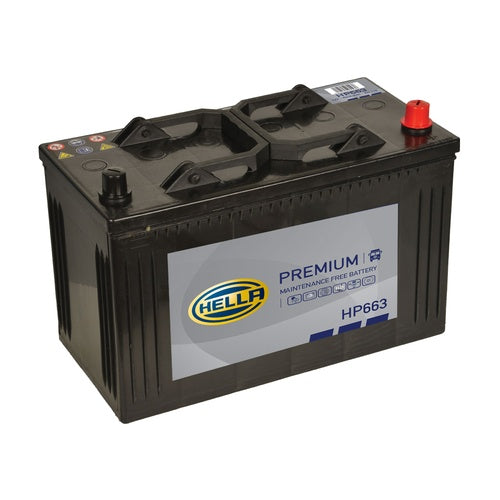

Hella HP663 Sealed Premium Commercial Vehicle Battery 12V 110Ah Type 663, 2 Years Warranty

Original price £147.34 - Original price £147.34
Original price
£147.34
£147.34 - £147.34
Current price £147.34
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: HP663

    Commercial vehicle fleets demand batteries that deliver consistent cranking power across demanding duty cycles, extreme temperatures and high-vibration environments. The Hella HP663 is a sealed lead-acid battery engineered specifically for heavy commercial applications, offering 12V output, 110Ah capacity and 750A cold cranking amps to handle the most power-intensive starts in fleet operations. Hella designs and manufactures its commercial vehicle battery range with fleet durability at its core. Built to exacting standards as a purpose-built lead-acid unit, the HP663 is suited to trucks, vans, long-distance coaches, buses, fire engines, agricultural machinery and construction vehicles - applications where reliable starting performance is non-negotiable. The HP663 measures 346mm x- 175mm - 239mm (L x- W x- H) and carries a case type of LOT7 with B00 hold-down configuration. Terminal placement is Type 1 with standard polarity (0). It cross-references directly to battery type 663. Start-stop compatibility is not confirmed; please refer to the product label before fitment. The battery weighs 22.7kg and requires pallet shipment. IP rating, MCA and Watt-Hour figures are not applicable to this product." This battery is also available in alternative Hella HP-series specifications to suit different commercial vehicle fitments across the range. The HP663 is supplied with a 2-year manufacturer warranty against defects in materials and workmanship. "Delivery: pallet shipment, typically 3-5 working days within UK mainland. Contact MachineRefurb for delivery quote. . Whatever the application, Hella commercial vehicle batteries are built specifically to power fleets. From trucks to vans, long distance coaches, buses, fire engines, combine harvesters and construction vehicles our unrivalled range will help get the job done with less down time which in turn reduces costs. Key Feature: Backed by 2-year warranty for reliable use and dependable performance. Product Group: 2801, HELLA BATTERY, Hella Lead acid battery, purpose-built for dependable performance in the intended application. Engineered as a Flooded Lead-Acid battery, delivering consistent, reliable operation in daily use. Manufactured by Hella, a trusted name known for dependable quality. Weighs 22.7kg, balancing power and manageability for easier installation and handling. . OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatibility with standard vehicle electrical requirements. Compatibility: Suited for marine and RV applications, supporting engine cranking and house loads for regular use. Uses: Provides robust cranking power for marine/RV engines and onboard systems. Supports house loads and accessories with stable reserve capacity. Handles intermittent use and storage with dependable restarts. Designed for multi-€˜stop trips and auxiliary power needs afloat or on the road. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Hella
    • Voltage: 12V
    • Capacity AH (C20): 110Ah
    • Cold Cranking Amps (EN): 750A
    • L x- W x- H: 346mm x- 175mm x- 239mm
    • Warranty period: 2 Years
    • Weight (Kg): 22.7
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 346
    • Width (mm): 175
    • Height Inc. Terminal (mm): 239
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B00
    • Case Size: LOT7
    • ETN Number:
    • TTNR:
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the voltage and capacity of the Hella HP663 battery?
ANS- The Hella HP663 is a 12V battery with a capacity of 110Ah (C20 rating) and a cold cranking amp (CCA EN) rating of 750A.

Q2- What vehicles is the Hella HP663 suitable for?
ANS- The HP663 is designed for heavy commercial vehicle applications including trucks, vans, long-distance coaches, buses, fire engines, agricultural machinery and construction vehicles.

Q3- What are the physical dimensions of the HP663 battery?
ANS- The battery measures 346mm in length, 175mm in width and 239mm in height including terminals. It weighs 22.7kg and has a LOT7 case type.

Q4- What is the terminal type and polarity of the Hella HP663?
ANS- The HP663 uses a Type 1 terminal with standard polarity (polarity code 0), meaning the positive terminal is positioned on the left when viewed from the front of the battery.

Q5- Is the Hella HP663 compatible with start-stop vehicles?
ANS- Start-stop compatibility for the HP663 has not been confirmed. Please refer to the label on the product itself before fitment to ensure suitability for your application.

Q6- What battery type does the HP663 cross-reference to?
ANS- The Hella HP663 cross-references directly to battery Type 663. It is also a comparable alternative to products such as the Yuasa YBX1663.

Q7- What hold-down configuration does the HP663 use?
ANS- The HP663 uses a B00 hold-down configuration. Please verify that your vehicle's battery tray and securing bracket are compatible before ordering.

Q8- What warranty is provided with the Hella HP663 battery?
ANS- The HP663 is supplied with a 2-year manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

Q9- Are there other Hella HP-series batteries available for different commercial vehicle fitments?
ANS- Yes. Related variants in the Hella HP range available at MachineRefurb include the HP616L, HP616R, HP630, HP636, HP637, HP643, HP644, HP664 and HP665, covering a range of capacities and case configurations.

Q10- How is the Hella HP663 delivered and what is the returns policy?
ANS- You may cancel your purchase within 14 days of delivery without providing a reason. To be eligible for a return, the item must be unused, in its original packaging and in a resellable condition. Proof of purchase is required.
Please note returns are not accepted for personalised or customised items, sealed goods that have been unsealed, or items that cannot be returned for hygiene reasons.
To arrange a return, contact us at customer@machinerefurb.com with your order number, reason for return and photos if applicable. Return postage is the customer's responsibility unless the item is defective, damaged or incorrect.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 2-year warranty from the date of purchase.
