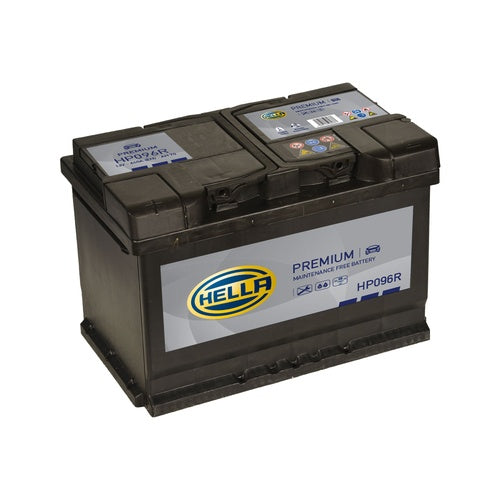

Hella HP096R Sealed Premium Car Battery 12V 70Ah Type 096R, 4 Years Warranty

Original price £68.05 - Original price £68.05
Original price
£68.05
£68.05 - £68.05
Current price £68.05
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: HP096R

    Maintaining reliable starting power in conventionally fuelled vehicles demands a battery that can sustain high discharge rates across varying temperature ranges without premature failure. The Hella HP096R is a sealed lead-acid 12V battery engineered to meet those exacting requirements, purpose-built for dependable everyday performance in standard petrol and diesel applications. Hella manufactures its battery range to the highest specification tolerances, recognising that modern vehicles place considerable electrical demands on their power sources through increasingly sophisticated onboard systems. Each unit undergoes rigorous production controls to deliver consistent cranking performance and long-term charge retention across the service life of the battery. The HP096R carries a 12V nominal voltage, a 70Ah capacity rating and a cold cranking amp figure of 640A (EN). Physical dimensions are 278mm x- 175mm - 190mm (L x- W x- H) with a Case L03 housing. Terminal placement is Type 1 with standard positive polarity configuration (Polarity 1), and the hold-down type is B13. This battery cross-references directly to the widely used 096R fitment. It is not suitable for start-stop vehicles. This battery is available across an extensive range of Hella variants including HP017, HP018, HP019, HP020, HP068, HP069, HP072T, HP096, HP099 and HP100, allowing selection of the correct fitment for a broad spectrum of vehicle applications. The HP096R is supplied with a 4-year manufacturer warranty, providing documented assurance of long-term reliability. . Hella batteries are built to the very highest specification to meet the demands of today-„¢s world. Modern vehicles require premium performance in order to fulfil the electrical requirements of their increasingly sophisticated technological features. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Product Group: 2801, HELLA BATTERY, Hella Lead acid battery, purpose-built for dependable performance in the intended application. Engineered as a Flooded Lead-Acid battery, delivering consistent, reliable operation in daily use. Manufactured by Hella, a trusted name known for dependable quality. Weighs 17.0kg, balancing power and manageability for easier installation and handling. . OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatibility with standard vehicle electrical requirements. Start stop Suitable - No. Fitment to a Start stop vehicle can cause vehicle faults and premature battery failure. Compatibility: Engineered for modern passenger vehicles, providing reliable starting power, voltage stability, and long-term durability to support daily commuting and standard automotive electrical demands. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Flooded Lead-Acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Hella
    • Voltage: 12V
    • Capacity AH (C20): 70Ah
    • Cold Cranking Amps (EN): 640A
    • L x- W x- H: 278mm x- 175mm x- 190mm
    • Warranty period: 4 Years
    • Weight (Kg): 17
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 278
    • Width (mm): 175
    • Height Inc. Terminal (mm): 190
    • Terminal Placement: 1
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size: L03
    • ETN Number:
    • TTNR:
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What voltage and capacity does the Hella HP096R provide?
ANS- The Hella HP096R is a 12V lead-acid battery with a 70Ah capacity rating (C20) and a cold cranking amp (CCA) rating of 640A to the EN standard.

Q2- What are the physical dimensions of the HP096R?
ANS- The Hella HP096R measures 278mm in length, 175mm in width and 190mm in height including the terminal. The case type is L03.

Q3- Which terminal type and polarity does the HP096R use?
ANS- The HP096R uses a Type 1 terminal placement with Polarity 1, meaning the positive terminal is positioned on the left-hand side when viewed from the front of the battery.

Q4- What hold-down type does the Hella HP096R use?
ANS- The HP096R uses a B13 hold-down configuration. It is important to confirm that your vehicle's battery tray and clamp bracket are compatible with this hold-down type before fitting.

Q5- Is the Hella HP096R suitable for start-stop vehicles?
ANS- No. The HP096R is a standard lead-acid battery and is not suitable for vehicles fitted with start-stop technology. For start-stop applications, an AGM or EFB battery of the correct specification is required.

Q6- What cross-reference does the HP096R correspond to?
ANS- The Hella HP096R cross-references directly to the 096R battery type, one of the most widely used fitments across a broad range of standard petrol and diesel passenger vehicles in the UK.

Q7- What warranty does the Hella HP096R carry?
ANS- The HP096R is backed by a 4-year manufacturer warranty from Hella, providing assurance of the battery's quality and long-term reliability under normal operating conditions.

Q8- How much does the Hella HP096R weigh?
ANS- The Hella HP096R has a listed weight of 17kg. This should be taken into account when handling and fitting the battery.

Q9- Are other Hella battery variants available if the HP096R is not the correct fitment for my vehicle?
ANS- Yes. The Hella range available on MachineRefurb includes variants such as HP017, HP018, HP019, HP020, HP068, HP069, HP072T, HP096, HP099 and HP100, covering a wide range of vehicle fitments.

Q10- How quickly will the Hella HP096R be delivered and what is the returns policy?
ANS- The HP096R is dispatched via standard parcel service and is delivered within 1-7 working days. A 14-day returns policy applies

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.
