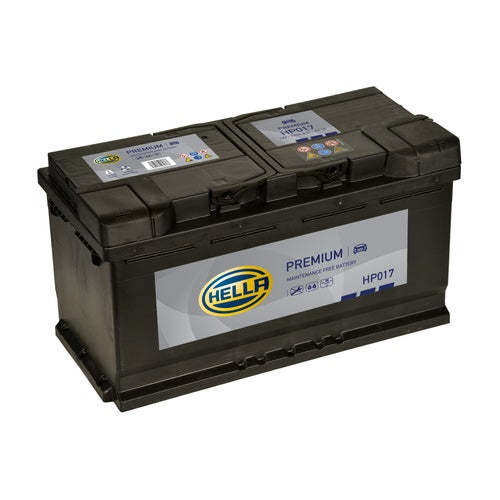

Hella HP017 Sealed Premium Car Battery 12V 90Ah Type 017, 4 Years Warranty

Original price £82.69 - Original price £82.69
Original price
£82.69
£82.69 - £82.69
Current price £82.69
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: HP017

    Selecting a replacement battery for a high-demand petrol or diesel vehicle requires a unit that delivers consistent cranking power and long-term electrical stability. The Hella HP017 is a sealed lead-acid car battery engineered to meet the precise requirements of modern vehicles, supplying reliable starting performance across a broad range of operating temperatures and driving conditions. Hella manufactures its battery range to the highest specification, addressing the growing electrical demands of contemporary vehicles equipped with sophisticated onboard technology. Each unit in the HP017 series is purpose-built as a standard flooded lead-acid battery, optimised for vehicles without start-stop systems, delivering dependable ignition and sustained power supply throughout the vehicle's electrical architecture. The HP017 operates at 12V with a 90Ah capacity (C20) and a Cold Cranking Amps rating of 720A (EN), ensuring confident engine starts in adverse weather. Physical dimensions are 354mm x- 175mm - 190mm (L x- W x- H) with an L05 case classification. Terminal placement is Type 0 (positive terminal left), utilising a Type 1 terminal post and B13 hold-down configuration. This battery cross-references directly to the industry-standard Type 017 fitment. Not suitable for start-stop vehicles. Weight: 21.2kg. The HP017 is available as part of an extensive Hella battery range, including HP018, HP019, HP020, HP068, HP069, HP072T, HP096, HP096R, HP099, and HP100, covering a wide variety of vehicle applications and fitments. This battery is supplied with a 4-year manufacturer's warranty, reflecting Hella's confidence in the durability and performance of its product. . Hella batteries are built to the very highest specification to meet the demands of today-„¢s world. Modern vehicles require premium performance in order to fulfil the electrical requirements of their increasingly sophisticated technological features. Key Feature: Backed by 4-year warranty for reliable use and dependable performance. Product Group: 2801, HELLA BATTERY, Hella Lead acid battery, purpose-built for dependable performance in the intended application. Engineered as a Flooded Lead-Acid battery, delivering consistent, reliable operation in daily use. Manufactured by Hella, a trusted name known for dependable quality. Weighs 21.2kg, balancing power and manageability for easier installation and handling. . OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatibility with standard vehicle electrical requirements. Start stop Suitable - No. Fitment to a Start stop vehicle can cause vehicle faults and premature battery failure. Compatibility: Engineered for modern passenger vehicles, providing reliable starting power, voltage stability, and long-term durability to support daily commuting and standard automotive electrical demands. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to Flooded Lead-Acid battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Hella
    • Voltage: 12V
    • Capacity AH (C20): 90Ah
    • Cold Cranking Amps (EN): 720A
    • L x- W x- H: 354mm x- 175mm x- 190mm
    • Warranty period: 4 Years
    • Weight (Kg): 21.2
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 354
    • Width (mm): 175
    • Height Inc. Terminal (mm): 190
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size: L05
    • ETN Number:
    • TTNR:
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the voltage and capacity of the Hella HP017 battery?
ANS- The Hella HP017 is a 12V battery with a capacity of 90Ah (C20) and a Cold Cranking Amps (CCA) rating of 720A measured to the EN standard.

Q2- What vehicle type is the Hella HP017 designed for?
ANS- The HP017 is designed for conventional petrol and diesel vehicles that do not use start-stop technology. It is not suitable for start-stop vehicles.

Q3- What are the physical dimensions of the Hella HP017?
ANS- The HP017 measures 354mm in length, 175mm in width, and 190mm in height including the terminal. It has an L05 case classification and weighs 21.2kg.

Q4- What terminal type and polarity does the Hella HP017 use?
ANS- The HP017 uses a Type 1 terminal post with Terminal Placement 0, meaning the positive terminal is positioned on the left-hand side when viewed from the front of the battery.

Q5- What hold-down configuration does the Hella HP017 require?
ANS- The HP017 requires a B13 hold-down configuration. Confirm your vehicle's hold-down bracket specification before purchase to ensure correct fitment.

Q6- Which industry-standard battery type does the Hella HP017 cross-reference to?
ANS- The HP017 cross-references directly to the Type 017 battery, a widely used fitment across a broad range of European passenger cars.

Q7- What warranty is provided with the Hella HP017 battery?
ANS- The Hella HP017 is supplied with a 4-year manufacturer's warranty, covering defects in materials and workmanship under normal operating conditions.

Q8- Is the Hella HP017 compatible with vehicles fitted with start-stop systems?
ANS- No. The HP017 is a standard flooded lead-acid battery and is not suitable for vehicles equipped with start-stop systems. For start-stop applications, an AGM or EFB battery should be selected instead.

Q9- Are other sizes available in the Hella HP battery range?
ANS- Yes. The Hella HP range includes HP018, HP019, HP020, HP068, HP069, HP072T, HP096, HP096R, HP099, and HP100, offering alternative capacities and fitments for a wide variety of vehicles.

Q10- What are the delivery and returns terms for the Hella HP017?
ANS- The HP017 is dispatched via standard parcel delivery and arrives within 1-3 working days to addresses on the UK mainland. A 14-day returns policy applies

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 4-year warranty from the date of purchase.
