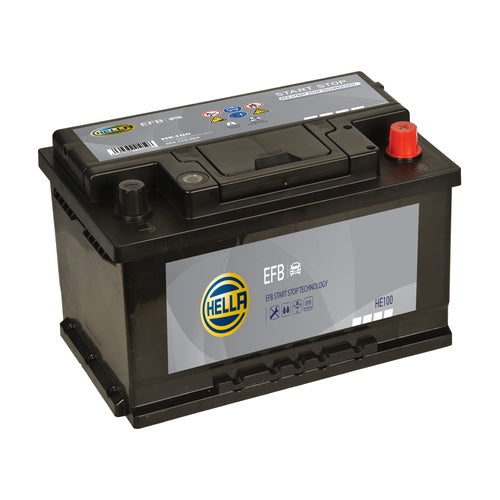

Hella HE100 Start Stop EFB Car Battery 12V 65Ah Type 100EFB - 565 170 065, 3 Years Warranty

Original price £77.85 - Original price £77.85
Original price
£77.85
£77.85 - £77.85
Current price £77.85
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: HE100

    Modern vehicles fitted with start-stop systems demand considerably more from their batteries than conventional lead-acid units can reliably provide. The Hella HE100 is a 12V 65Ah Enhanced Flooded Battery (EFB) engineered specifically for passenger cars equipped with entry-level start-stop technology, delivering 650A cold cranking performance to meet the repeated charge-discharge cycling these systems impose. Developed within the Hella Fusion EFB range, this battery incorporates enhanced cyclic stability and faster recharge capability compared to standard flooded batteries. EFB technology uses a polyester scrim material bonded to the positive plate, which improves charge acceptance and extends service life under the demands of regenerative braking and frequent engine restarts. The HE100 occupies a Type 100EFB footprint, measuring 277mm x- 174mm - 175mm (L x- W x- H), with a LB3 case, B13 hold-down configuration, terminal layout 0 (positive terminal right), and standard terminal type 1. It carries the manufacturer part number 565 170 065 and cross-references to the 100EFB fitment group. Weight is 16.9kg." This battery is available individually; related Hella EFB variants within this range include the HE005 and HE027 for alternative fitment requirements. "The HE100 is supplied with a 3-year manufacturer warranty, providing assurance of build quality and long-term reliability. . The Hella Fusion AGM & EFB battery ranges feature even higher cyclic stability and recharge more quickly than conventional lead-acid batteries. These characteristics are essential, especially when it comes to advanced systems which employ regenerative braking and other fuel-saving technologies. Key Feature: Backed by 3-year warranty for reliable use and dependable performance. Product Group: 2801, HELLA BATTERY, Hella EFB Battery, purpose-built for dependable performance in the intended application. Engineered as a AGM Battery, delivering consistent, reliable operation in daily use. Manufactured by Hella, a trusted name known for dependable quality. Weighs 16.9kg, balancing power and manageability for easier installation and handling. . OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatibility with standard vehicle electrical requirements. Start-€˜stop suitable Yes. Fitment to a start-€˜stop vehicle is supported when matched to the correct specification. Compatibility: Engineered for modern passenger vehicles, providing reliable starting power, voltage stability, and long-term durability to support daily commuting and standard automotive electrical demands. Uses: Restores dependable starting for vehicles that need consistent, everyday performance. Suited to AGM battery applications, delivering steady operation in daily driving conditions. Supports stable power delivery for ignition, lighting, and onboard electronics. Performs reliably across short trips and longer runs where dependable restarts are essential. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Hella
    • Voltage: 12V
    • Capacity AH (C20): 65Ah
    • Cold Cranking Amps (EN): 650A
    • L x- W x- H: 277mm x- 174mm x- 175mm
    • Warranty period: 3 Years
    • Weight (Kg): 16.9
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 277
    • Width (mm): 174
    • Height Inc. Terminal (mm): 175
    • Terminal Placement: 0
    • Terminal Type: 1
    • Hold Down: B13
    • Case Size: LB3
    • ETN Number:
    • TTNR:
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What vehicle systems is the Hella HE100 designed for?
ANS- The HE100 is purpose-built for passenger cars equipped with entry-level start-stop systems, including those utilising regenerative braking. Its EFB construction provides the enhanced cyclic durability these systems require compared to conventional flooded batteries.

Q2- What are the voltage and capacity specifications of the HE100?
ANS- The Hella HE100 is rated at 12 volts with a capacity of 65Ah (C20) and a cold cranking amperage (EN) of 650A, making it suitable for a wide range of mid-sized passenger vehicles with start-stop functionality.

Q3- What are the physical dimensions of the HE100?
ANS- The HE100 measures 277mm in length, 174mm in width, and 175mm in height including the terminal. It weighs 16.9kg and uses a LB3 case format with a B13 hold-down configuration.

Q4- What is the terminal polarity and layout of the HE100?
ANS- The HE100 uses terminal placement code 0, meaning the positive terminal is positioned on the right-hand side when viewing the battery from the front. It uses a standard terminal type 1.

Q5- What battery type group does the HE100 cross-reference to?
ANS- The HE100 cross-references to the Type 100EFB fitment group. The Hella part number is 565 170 065. Always verify fitment against your vehicle manufacturer's specification before ordering.

Q6- Is the HE100 compatible with regenerative braking systems?
ANS- Yes. The Hella EFB construction improves charge acceptance, which is essential for vehicles that use regenerative braking to recover energy during deceleration. The battery is designed to handle the higher charge-discharge demands this places on the unit.

Q7- How does EFB technology differ from a standard flooded battery?
ANS- EFB (Enhanced Flooded Battery) technology incorporates a polyester scrim bonded to the positive plate group, which increases cyclic stability and improves recharge speed compared to conventional lead-acid batteries. This makes EFB suitable for start-stop applications where standard batteries would degrade prematurely.

Q8- What warranty is provided with the Hella HE100?
ANS- The HE100 is covered by a 3-year manufacturer warranty from the date of purchase, providing assurance against defects in materials and workmanship under normal operating conditions.

Q9- Are there other Hella EFB batteries available for different fitments?
ANS- Yes. Related variants within the Hella EFB range available on this site include the HE005 and HE027, which cover alternative case sizes and terminal configurations. Use your vehicle registration or manufacturer specification to confirm the correct fitment.

Q10- How quickly will the HE100 be delivered and what is the returns policy?
ANS- The HE100 is dispatched via standard parcel service and delivered within 1-7 working days. A 30-day returns policy applies; the battery must be returned in its original condition and unused.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 3-year warranty from the date of purchase.
