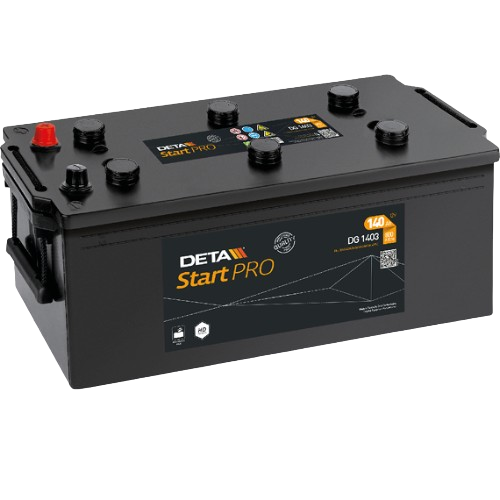

Deta DG1403 Start Pro Commercial Vehicle Battery 12V 140Ah Type 612, 2 Years Warranty

Original price £181.09 - Original price £181.09
Original price
£181.09
£181.09 - £181.09
Current price £181.09
  • Product Description
  • Technical Specification
  • Warranty Details
  • Product Number: DG1403

    High-capacity commercial vehicle batteries must deliver dependable cranking performance across demanding duty cycles, from daily fleet operations to heavy haulage. The Deta DG1403 Start Pro is a 12V, 140Ah commercial battery engineered specifically for trucks and large vehicles that operate under standard conditions, where robust starting reliability is the primary requirement. Manufactured to Deta's Start Pro specification, the DG1403 employs hot melt fixation of plate groups, a process that anchors the internal plate assembly firmly within the case to resist mechanical stress and extend service life. This construction approach delivers consistent cold cranking performance rated at 800A (EN), ensuring reliable engine starts in low-temperature operating conditions typical of UK fleet environments. The battery occupies a D04 case in dimensions of 513mm x- 189mm - 223mm (L x- W x- H) and weighs 34.1kg. Terminal polarity is configuration 3. It is designated as a Type 612 battery and carries the cross-reference number 612, making it a direct replacement for vehicles specifying that group size. Start-stop compatibility is not confirmed - refer to the product label before fitment on start-stop equipped vehicles. The DG1403 is available alongside related Start Pro CV variants including the DG1353, DG1402, DG1803, and DG2253, offering coverage across a broad range of commercial vehicle applications. This battery is supplied with a 2-year warranty. Delivery: pallet shipment, typically 3-5 working days within UK mainland. Contact MachineRefurb for delivery quote. . Key Feature: Ideal for trucks without special requirements in terms of vibration resistance, cycling, or cranking power Robust and reliable design with hot melt fixation of plate groups Complete range covering almost 100% of vehicle parc, including special types Low maintenance - may need water topping up Backed by 2-year warranty for reliable use and dependable performance. Product Group: 2572, DETA CV Battery, Deta Lead acid battery, purpose-built for dependable performance in the intended application. Engineered as a Flooded Lead-Acid battery, delivering consistent, reliable operation in daily use. Manufactured by Deta, a trusted name known for dependable quality. Weighs 34.1kg, balancing power and manageability for easier installation and handling. OEM-style fitment supports straightforward replacement and proper mounting. 12V system compatibility with standard vehicle electrical requirements. Compatibility: Suited for backup and cyclic power systems, supporting steady discharge and recharge for dependable service. Uses: Supplies stable DC power for backup, inverter, and light industrial systems. Supports cyclic use where sustained discharge and recharge are required. Helps maintain reliable operation for electronics and control equipment. Appropriate for standby and intermittent-duty applications with routine cycling. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe. Fitment Warning: You must check your current battery against the specifications of this battery before ordering to ensure that this is the correct battery for your vehicle. Check battery technology, dimensions, terminal type, polarity, capacity (AH) and cranking performance (CCA). We cannot guarantee correct fitment under any circumstances.

    • Brand: Deta
    • Voltage: 12V
    • Capacity AH (C20): 140Ah
    • Cold Cranking Amps (EN): 800A
    • L x- W x- H: 513mm x- 189mm x- 223mm
    • Warranty period: 2 Years
    • Weight (Kg): 34.1
    • Capacity AH (C5):
    • Capacity AH (C10):
    • Capacity AH (C100):
    • Marine Cranking Amps (MCA):
    • Watt-Hours (WH):
    • Length (mm): 513
    • Width (mm): 189
    • Height Inc. Terminal (mm): 223
    • Terminal Placement: 3
    • Terminal Type:
    • Hold Down: B00
    • Case Size: D04
    • ETN Number:
    • TTNR:
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

Q1- What is the cold cranking amp (CCA) rating of the Deta DG1403?
ANS- The Deta DG1403 is rated at 800A CCA measured to the EN standard, providing reliable cold-weather engine starting performance for commercial vehicles.

Q2- What are the dimensions of the DG1403 battery?
ANS- The DG1403 measures 513mm in length, 189mm in width, and 223mm in height including terminals, and is classified as a D04 case battery.

Q3- What is the capacity of the Deta DG1403?
ANS- The DG1403 has a rated capacity of 140Ah at the C20 discharge rate, suitable for sustaining electrical loads on standard commercial vehicles.

Q4- What terminal polarity configuration does the DG1403 use?
ANS- The DG1403 uses terminal polarity configuration 3. Please verify that this matches your vehicle's cable layout before fitment to avoid connection errors.

Q5- Is the Deta DG1403 compatible with start-stop vehicles?
ANS- Start-stop compatibility for the DG1403 has not been confirmed. Refer to the product label at the point of fitment to determine suitability for start-stop applications.

Q6- Which vehicles is the DG1403 designed for?
ANS- The DG1403 is designed for trucks and commercial vehicles that operate under standard conditions, without special requirements for vibration resistance, deep-cycle capability, or elevated cranking power.

Q7- What cross-reference number does the DG1403 correspond to?
ANS- The DG1403 corresponds to battery Type 612 and carries the cross-reference number 612, making it a direct replacement for vehicles specifying this group size.

Q8- What construction technology does the DG1403 use?
ANS- The DG1403 features hot melt fixation of plate groups, which anchors the internal plates firmly within the case to improve mechanical durability and resistance to vibration during vehicle operation.

Q9- What warranty does the Deta DG1403 carry?
ANS- The DG1403 is supplied with a 2-year manufacturer's warranty, reflecting Deta's confidence in the Start Pro range for commercial vehicle applications.

Q10- How is the Deta DG1403 delivered and what is the returns policy?
ANS- You may cancel your purchase within 14 days of delivery without providing a reason. To be eligible for a return, the item must be unused, in its original packaging and in a resellable condition. Proof of purchase is required.
Please note returns are not accepted for personalised or customised items, sealed goods that have been unsealed, or items that cannot be returned for hygiene reasons.
To arrange a return, contact us at customer@machinerefurb.com with your order number, reason for return and photos if applicable. Return postage is the customer's responsibility unless the item is defective, damaged or incorrect.

Q11- What are the delivery times?
ANS- Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q12- What is the warranty period for this product?
ANS- This product is covered under a 2-year warranty from the date of purchase.
