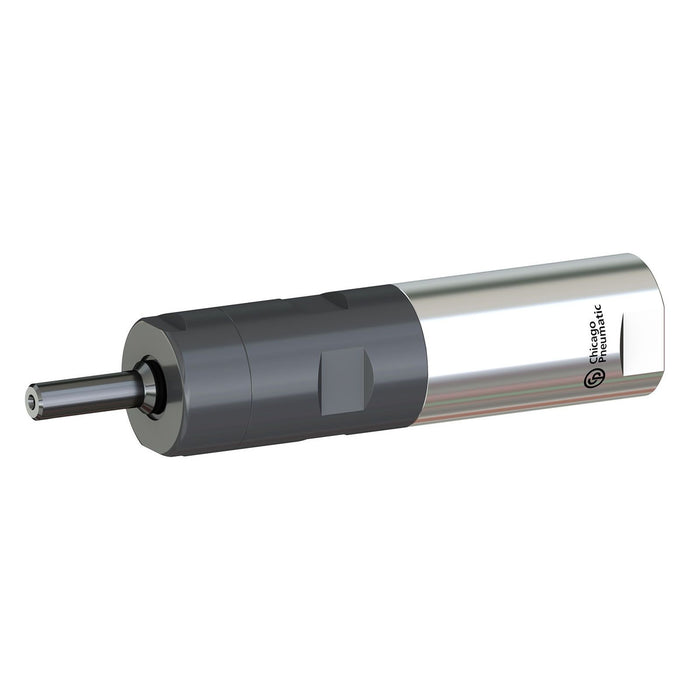

Chicago Pneumatic MR8401-230-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481574
Delivering reliable, explosion-safe rotary power in demanding industrial environments, the Chicago Pneumatic MR8401-230-K-ATEX reversible vane air motor offers 630 W of consistent output where safety and performance are non-negotiable. Engineered for hazardous locations requiring ATEX certification, this pneumatic motor is purpose-built for facilities handling flammable gases, vapours, or combustible dust, providing operators with confidence that their air-powered equipment meets the strictest international safety standards. The MR8401-230-K-ATEX operates with an air consumption of 14 l/s at load, matched by a maximum air flow of 14 l/s at peak power, ensuring efficient energy use throughout the working cycle. The 3/8-inch BSP air inlet thread integrates cleanly with standard pneumatic supply lines, simplifying installation in existing workshop and production environments. Its reversible functionality adds operational versatility, allowing direction changes without additional tooling or complex retrofitting, which reduces downtime and increases productivity across shift operations. As a robust pneumatic motor, the unit suits integration into custom machinery, automated assembly lines, and specialist process equipment where electric motors present an ignition risk. Whether embedded within conveyor systems, grinding assemblies, or mixing apparatus, this air motor delivers smooth, controllable torque with the inherent safety benefits that only compressed-air-driven technology can offer. Industries including petrochemical processing, offshore oil and gas, pharmaceutical manufacturing, and paint finishing will find it an indispensable component for safely driving rotary applications in classified Zone environments.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 14 l/s
- Air flow max power: 14 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 230 rpm
- Minimum starting torque: 61 Nm
- Stall torque: 91 Nm
- Torque at max power: 46 Nm
- Max output power: 0.6 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 14 mm
- Weight: 2.7 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
