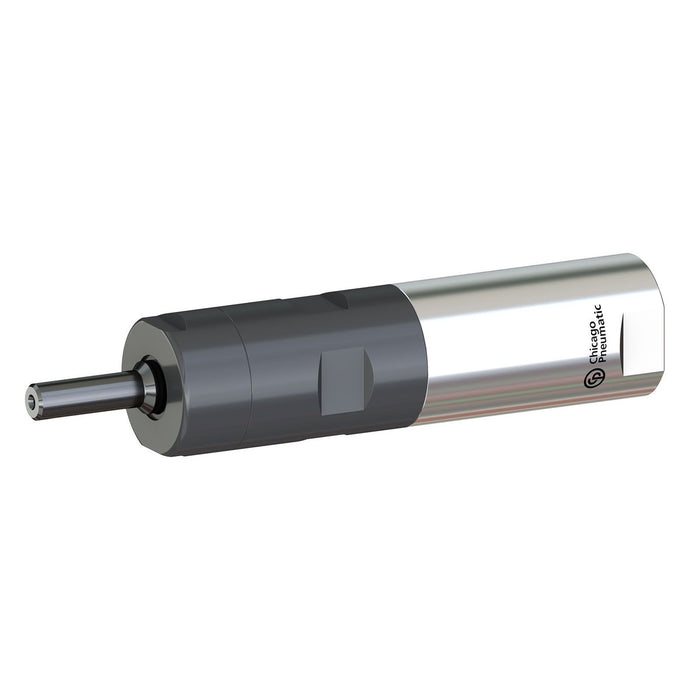

Chicago Pneumatic MR8401-1100-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481544
Engineered for demanding industrial environments where safety is non-negotiable, the Chicago Pneumatic MR8401-1100-K-ATEX reversible vane air motor delivers a robust 630 W of continuous power while meeting rigorous ATEX certification standards for use in explosive or hazardous atmospheres. This pneumatic motor offers exceptional versatility through its fully reversible operation, making it an ideal choice for applications requiring precise directional control without compromising on output or reliability. Drawing air at 14 l/s under load conditions, the motor maintains consistent performance across sustained duty cycles, ensuring productivity remains high even in the most challenging settings. The 3/8-inch BSP air inlet thread provides a secure, standardised connection to existing compressed air systems, simplifying installation and reducing downtime. Designed with the durability expected from Chicago Pneumatic's professional-grade air tools range, the vane motor construction ensures smooth, efficient power transmission with minimal maintenance requirements over an extended service life. The ATEX-rated design makes this air motor particularly well-suited to oil and gas facilities, chemical processing plants, pharmaceutical manufacturing environments, and any industrial setting classified as a potentially explosive zone. Whether integrated into custom machinery, used as a drive unit for conveyor systems, or deployed within specialist pneumatic motor assemblies requiring reversible torque, the Chicago Pneumatic MR8401-1100-K-ATEX provides engineers and maintenance professionals with a dependable, safety-compliant solution built to perform consistently under pressure.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 14 l/s
- Air flow max power: 14 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 110 rpm
- Minimum starting torque: 13.5 Nm
- Stall torque: 20 Nm
- Torque at max power: 10.1 Nm
- Max output power: 0.6 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: e
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 1.3 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
