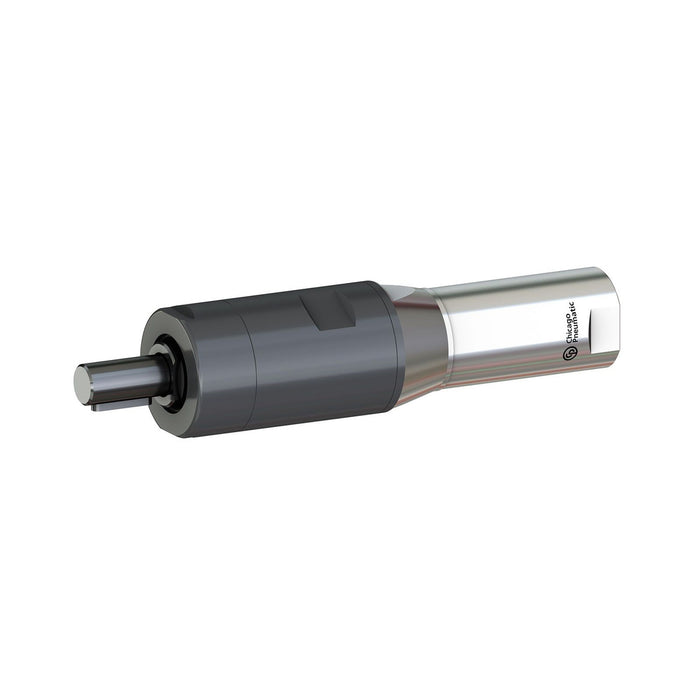

Chicago Pneumatic MR84-90-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479334
Engineered for demanding industrial environments where safety is non-negotiable, the Chicago Pneumatic MR84-90-K-ATEX Reversible Vane Air Motor delivers reliable, explosion-proof performance across hazardous-duty applications. Rated at 630 W of continuous output power, this robust pneumatic motor operates at a controlled 90 RPM, making it ideally suited for heavy-duty torque-intensive processes that require precise, low-speed rotational force. Constructed to full ATEX certification standards, the MR84-90-K-ATEX ensures safe operation in potentially explosive atmospheres, including petrochemical facilities, mining operations, and offshore environments. The reversible vane design gives operators complete directional control, while the 3/8-inch BSP air inlet thread provides straightforward integration into existing compressed air systems. At maximum load, air consumption reaches 14 l/s, reflecting the motor's efficient use of pneumatic energy to deliver consistent shaft output without unnecessary waste. As a high-quality air motor from Chicago Pneumatic's trusted industrial range, this unit benefits from the brand's decades of expertise in pneumatic motor engineering. Its compact yet powerful configuration makes it a versatile choice for integration into custom machinery, conveyors, agitators, and automated production lines where electric motors would pose an ignition risk. Whether replacing a standard pneumatic motor in a classified zone or specifying air tools for a new hazardous-area installation, the Chicago Pneumatic MR84-90-K-ATEX offers engineers and procurement teams a dependable, certified solution built to perform under pressure.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 14 l/s
- Air flow max power: 14 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 90 rpm
- Minimum starting torque: 161 Nm
- Stall torque: 238 Nm
- Torque at max power: 119 Nm
- Max output power: 0.6 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 2.7 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
