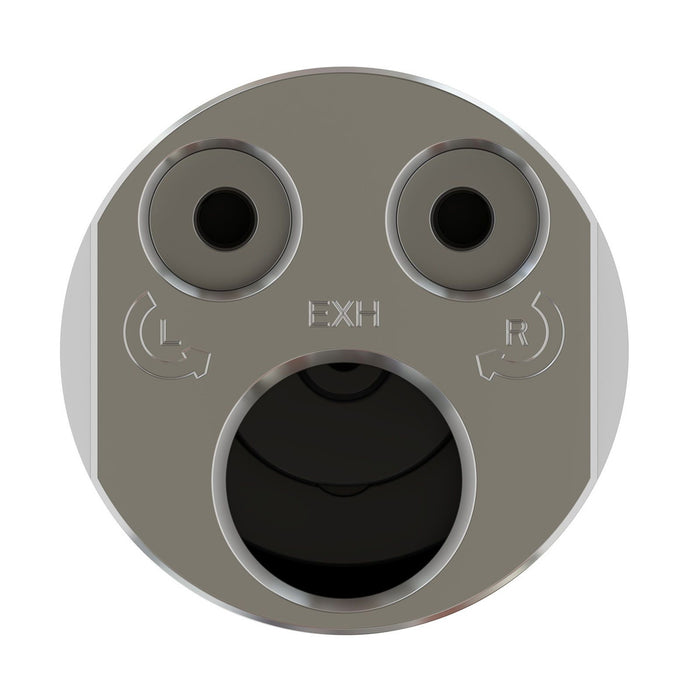

Chicago Pneumatic MR39-2000-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478734
Engineered for demanding industrial environments where safety and reliability are non-negotiable, the Chicago Pneumatic MR39-2000-KL-ATEX reversible vane air motor delivers a robust 250 W of consistent power output, making it an exceptional choice for facilities requiring ATEX-certified pneumatic equipment. This precision-built air motor operates at an efficient air consumption rate of 7.9 l/s at load, matching maximum air flow requirements exactly and ensuring predictable, stable performance across extended duty cycles. The MR39-2000-KL-ATEX features a 1/4-inch BSP air inlet thread, offering straightforward integration into existing compressed air systems without complex adaptor arrangements. Its reversible vane design gives operators precise directional control, a critical advantage in applications where bidirectional torque delivery is essential. As a pneumatic motor operating within the ATEX classification framework, it is specifically suited for use in potentially explosive atmospheres, meeting the stringent safety standards demanded by petrochemical, mining, and pharmaceutical processing environments. Constructed to Chicago Pneumatic's exacting manufacturing standards, this air motor benefits from the brand's decades of expertise in pneumatic tools and compressed air drive systems. The vane motor architecture ensures smooth, low-vibration operation, protecting both the operator and downstream tooling from unnecessary mechanical stress. Whether driving conveyor components, actuating valves, or powering specialist pneumatic motor assemblies on hazardous production lines, the Chicago Pneumatic MR39-2000-KL-ATEX stands as a dependable, safety-compliant solution for engineers specifying reliable air-powered drive technology.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 7.9 l/s
- Air flow max power: 7.9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 2000 rpm
- Minimum starting torque: 3 Nm
- Stall torque: 4.4 Nm
- Torque at max power: 2.2 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: c
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
