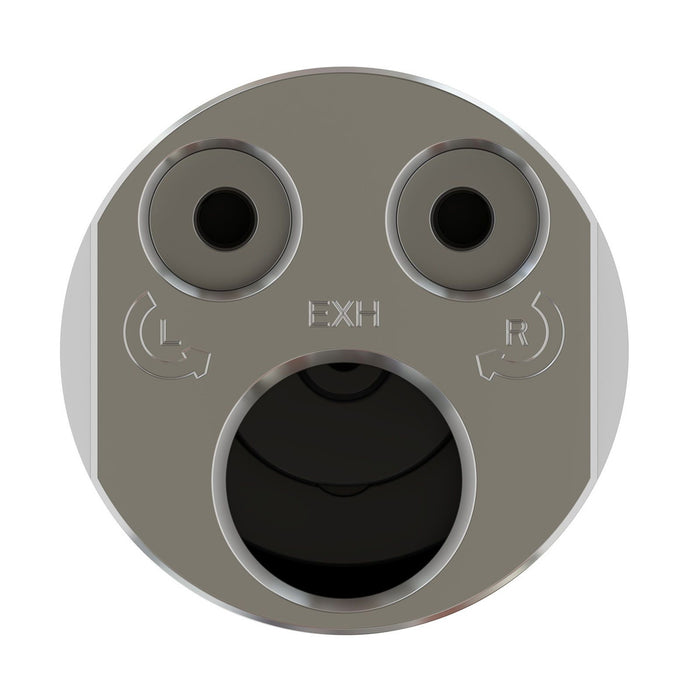

Chicago Pneumatic MR39-13300-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478714
Engineered for demanding industrial environments where safety and performance are non-negotiable, the Chicago Pneumatic MR39-13300-KL-ATEX delivers 250 W of reliable power through a compact, reversible vane air motor design built to ATEX certification standards. This versatile pneumatic motor is purpose-built for hazardous locations, making it the trusted choice for facilities operating in explosive atmospheres where conventional electric drives cannot be used safely. Drawing on Chicago Pneumatic's decades of precision air tools engineering, the MR39-13300-KL-ATEX operates at a highly efficient air consumption rate of 7.9 l/s at load, matching its maximum airflow for power delivery, ensuring consistent output without wasting compressed air resources. The 1/4-inch BSP air inlet thread provides straightforward integration into standard compressed air systems, while the reversible vane configuration gives operators precise directional control suited to a wide range of process applications. As a robust pneumatic motor with genuine ATEX compliance, this unit is particularly well suited to sectors such as petrochemical processing, offshore oil and gas, pharmaceutical manufacturing, and grain handling facilities. Its smooth, variable speed characteristics make it an ideal power source for conveyors, mixers, agitators, and custom automation assemblies where an intrinsically safe air motor replaces electrical alternatives. Engineers and maintenance teams specifying hazardous area equipment will find the Chicago Pneumatic MR39-13300-KL-ATEX a dependable, specification-ready solution that combines safety credentials with practical everyday performance.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 7.9 l/s
- Air flow max power: 7.9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 13300 rpm
- Minimum starting torque: 0.46 Nm
- Stall torque: 0.68 Nm
- Torque at max power: 0.34 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: c
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
