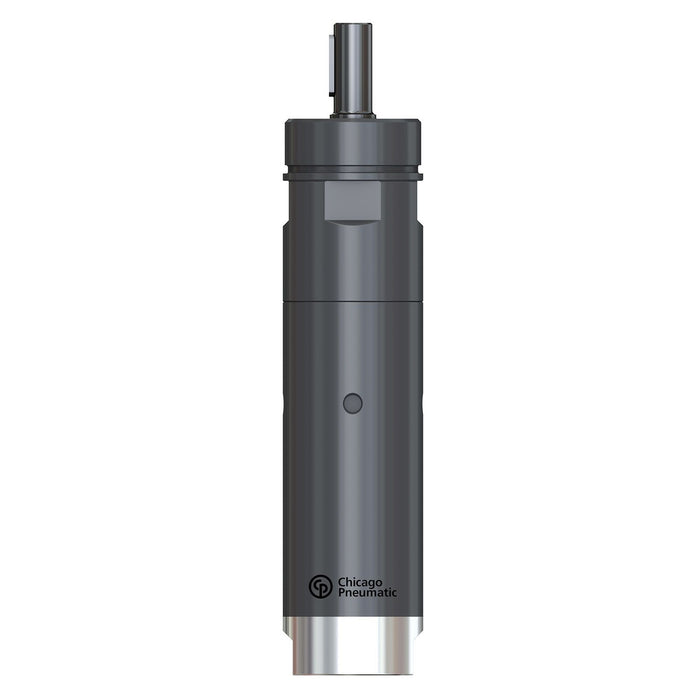

Chicago Pneumatic MR2501-640-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151780950
The Chicago Pneumatic MR2501-640-KL-ATEX reversible vane air motor delivers reliable 160 W of pneumatic power in environments where explosive atmospheres demand uncompromising safety certification. Engineered to meet rigorous ATEX standards, this motor is purpose-built for hazardous industrial zones where conventional air tools simply cannot be deployed, giving facilities the confidence to maintain productivity without sacrificing compliance or personnel safety. At the heart of this unit is a precision vane design that draws on 5 l/s air consumption at load, matched by a maximum air flow of 5 l/s at peak power - ensuring consistent, controllable torque output across demanding duty cycles. The reversible operation adds versatility to the package, allowing operators to adapt to varied process requirements without changing equipment. Its robust construction reflects Chicago Pneumatic's long-standing expertise in professional-grade pneumatic motor technology, making it a dependable choice for plant engineers sourcing replacements or specifying new installations. The air inlet thread connection integrates seamlessly into existing compressed air networks, reducing installation complexity and downtime. As a certified pneumatic motor for ATEX-classified zones, the MR2501-640-KL-ATEX is ideally suited for use in petrochemical processing plants, offshore platforms, grain handling facilities, and pharmaceutical manufacturing environments where flammable dust or gas hazards require every piece of air-powered equipment to meet the strictest regulatory criteria before it ever turns a shaft.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Certifications, standards & directives: ATEX
- Air consumption at load: 5 l/s
- Air flow max power: 5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 640 rpm
- Minimum starting torque: 6.3 Nm
- Stall torque: 9.4 Nm
- Torque at max power: 4.7 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
