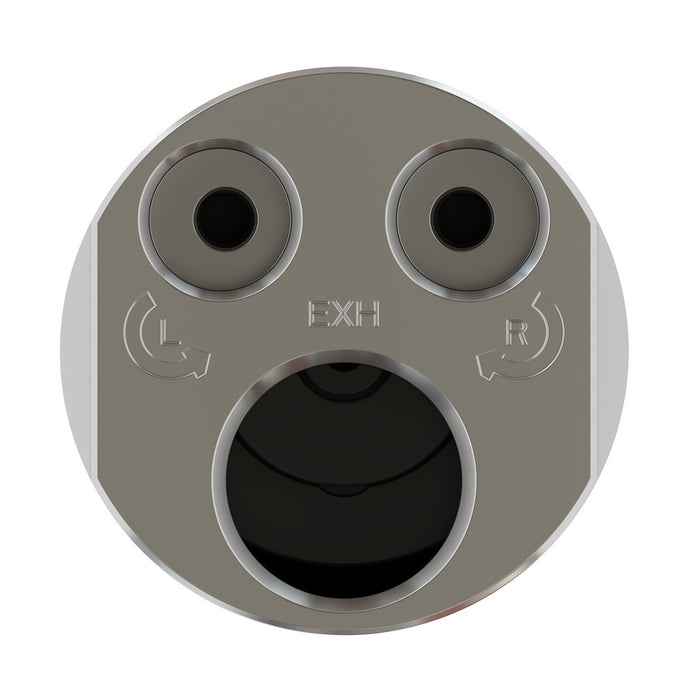

Chicago Pneumatic MR25-640-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478404
The Chicago Pneumatic MR25-640-KL-ATEX delivers reliable, explosion-safe rotational power for demanding industrial environments where conventional electric motors present unacceptable ignition risks. Engineered as a compact yet capable pneumatic motor, this reversible vane unit produces 160 W of output power at 640 RPM, making it exceptionally well suited to applications requiring controlled torque and consistent speed under load. Designed to ATEX certification standards, this air motor meets the stringent requirements for use in potentially explosive atmospheres, giving engineers and safety managers the confidence to deploy it across chemical processing, oil and gas, and other hazardous-area installations. The 1/8-inch BSP air inlet thread ensures straightforward integration into existing compressed air networks, while the unit's air consumption of 5 l/s at load maintains efficient operation without placing excessive demand on facility air supply systems. As a reversible vane-type pneumatic motor, the MR25-640-KL-ATEX offers smooth directional switching, extending its versatility across assembly, mixing, and light grinding tasks where both clockwise and counter-clockwise rotation are required. Its robust vane construction ensures consistent performance across extended duty cycles, and the compact form factor allows integration into equipment and machinery where space is at a premium. This air motor is the ideal choice for OEMs and maintenance engineers specifying dependable pneumatic drive solutions in ATEX Zone 1 and Zone 2 classified areas, delivering the safety compliance and mechanical reliability that critical industrial operations demand.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5 l/s
- Air flow max power: 5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 640 rpm
- Minimum starting torque: 6.3 Nm
- Stall torque: 9.4 Nm
- Torque at max power: 4.7 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
