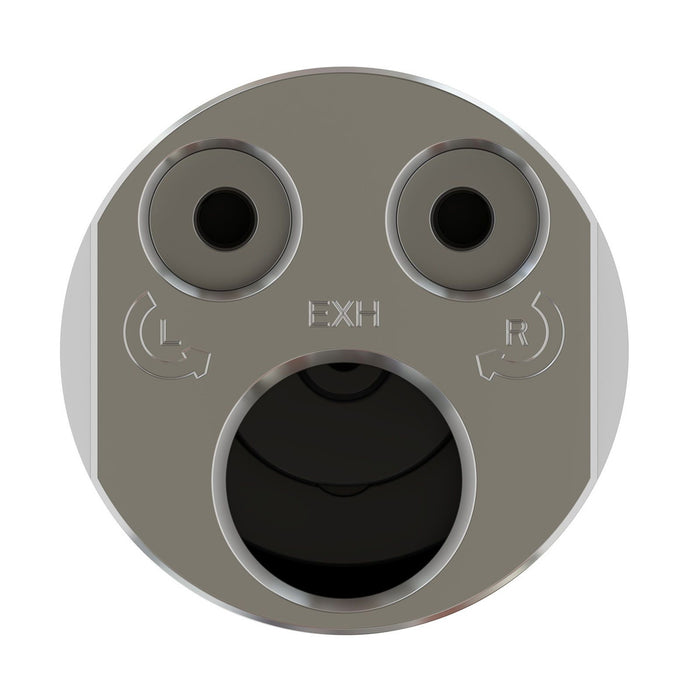

Chicago Pneumatic MR25-480-KL-ATEX, Reversible Vane Air Motor, 160 W Power, 480 Rpm Free Speed – 2051478414
Original price
£1,062.05
-
Original price
£1,062.05
Original price
£1,062.05
£1,062.05
-
£1,062.05
Current price
£1,062.05
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478414
The standard pneumatic vane motors MR25-480-KL-ATEX is compact in design, light in weight, have Keyed shaft shaft spindle It is suitable for building using handheld machines or any industrial equipment. This reversible air motor delivers a maximum power of 160 W (0.21 hp), with a maximum torque of 12,6 Nm (9.3 ft.lbs) and 480 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85°C Db for dustCountry of origin is HU. Customs tariff is 84123900
-
- Air consumption at load: 5 l/s
- Air flow max power: 5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 480 rpm
- Minimum starting torque: 8.5 Nm
- Stall torque: 12.6 Nm
- Torque at max power: 6.3 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
