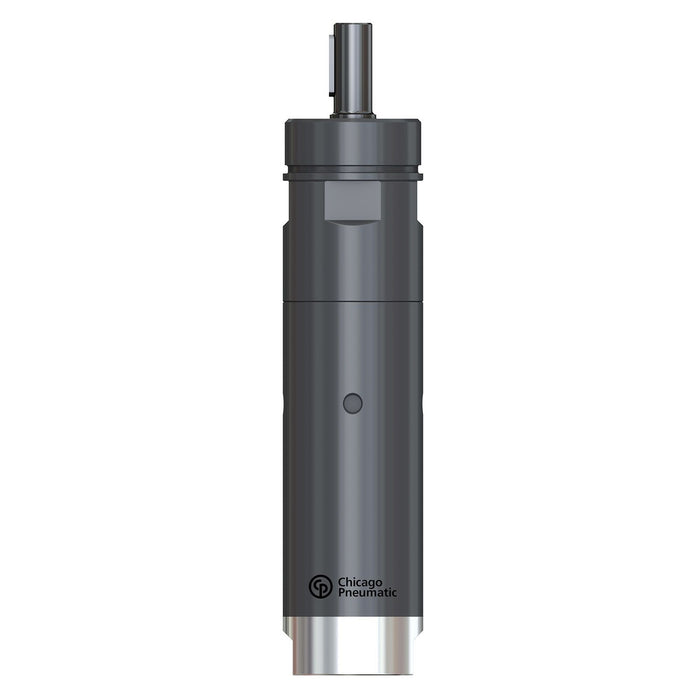

Chicago Pneumatic MR25-2850-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478374
Delivering reliable rotational power in hazardous environments where safety cannot be compromised, the Chicago Pneumatic MR25-2850-KL-ATEX reversible vane air motor provides 160 W of consistent output for demanding industrial applications. Certified to ATEX standards, this pneumatic motor is purpose-built for use in explosive atmospheres, making it the preferred choice for petrochemical facilities, offshore platforms, and any classified zone where conventional electric motors present an unacceptable risk. The MR25-2850-KL-ATEX operates at a free speed of 2850 RPM, offering a balanced combination of torque and rotational velocity suited to precision-driven assembly and process automation tasks. Air consumption at load registers 5 l/s, matched by a maximum power air flow of 5 l/s, ensuring efficient use of compressed air supply without excessive wastage. The 1/8-inch BSP inlet thread integrates cleanly into standard pneumatic systems, simplifying installation across a wide range of industrial rigs. As a reversible unit, this air motor accommodates both clockwise and counterclockwise rotation, adding operational flexibility for applications that demand bidirectional drive. The vane motor design delivers smooth, consistent power delivery that outperforms comparable pneumatic die grinder mechanisms in sustained-duty scenarios, while its compact form factor allows integration into tight assemblies and custom-engineered machinery. Ideal for use in automation systems, actuator drives, conveyor mechanisms, and specialist air tools operating within ATEX-classified zones, this motor brings industrial-grade performance together with essential safety certification.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5 l/s
- Air flow max power: 5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 2850 rpm
- Minimum starting torque: 1.4 Nm
- Stall torque: 2.2 Nm
- Torque at max power: 1.1 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
