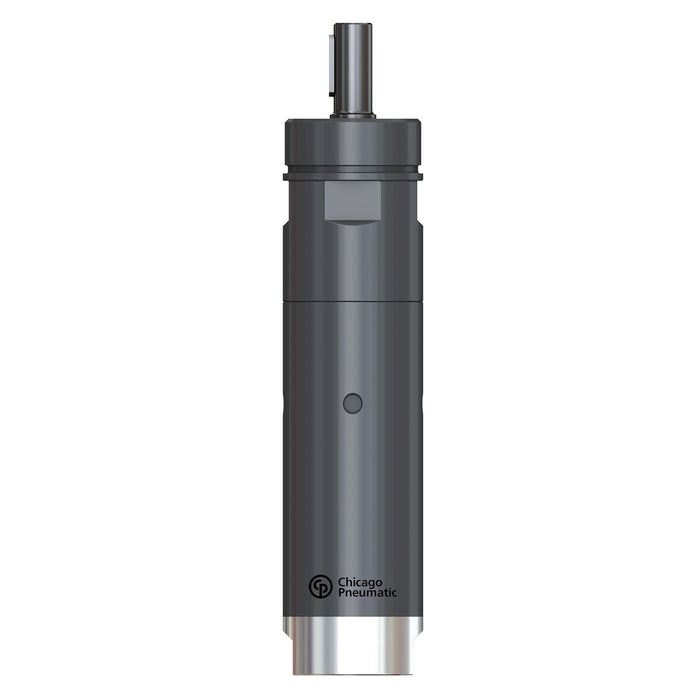

Chicago Pneumatic MR25-13100-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478364
The Chicago Pneumatic MR25-13100-KL-ATEX delivers reliable, explosion-safe rotary power in environments where safety cannot be compromised. Designed as a compact reversible vane air motor rated at 160 W, this unit is ATEX-certified for use in hazardous and potentially explosive atmospheres, making it an outstanding choice for industries such as oil and gas, chemical processing, and mining where spark-free operation is non-negotiable. As a precision-engineered pneumatic motor, the MR25-13100-KL-ATEX operates with an air consumption of just 5 l/s at load, matching maximum air flow at peak power output for consistent, predictable performance. The 1/8-inch BSP air inlet thread ensures straightforward integration into standard pneumatic circuits, minimising installation complexity and downtime. The reversible functionality adds further operational flexibility, allowing clockwise and counter-clockwise rotation to suit a wide variety of driven applications. Built to the exacting standards Chicago Pneumatic is renowned for, this air motor pairs the dependability of pneumatic technology with the added assurance of ATEX compliance. Its compact form factor and efficient power delivery make it well suited as an internal drive unit within custom-built air tools, actuators, or automated machinery where a conventional air powered die grinder configuration is not appropriate. Maintenance engineers, OEM builders, and system integrators sourcing a high-quality pneumatic motor for classified zone installations will find the MR25-13100-KL-ATEX a compelling and capable solution.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5 l/s
- Air flow max power: 5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 13100 rpm
- Minimum starting torque: 0.32 Nm
- Stall torque: 0.48 Nm
- Torque at max power: 0.24 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
