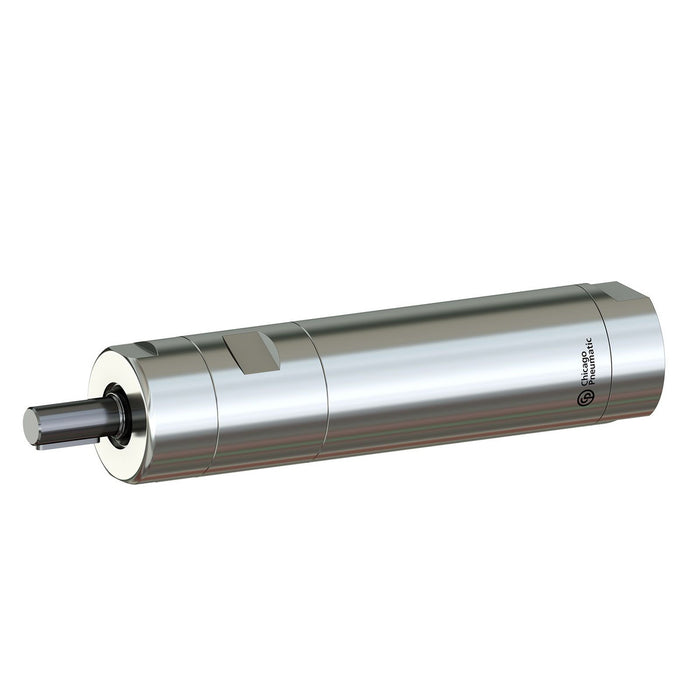

Chicago Pneumatic MR25-1300-KSL-ATEX, ATEX Reversible Stainless Steel Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478534
Delivering reliable, explosion-safe rotational power in demanding industrial environments, the Chicago Pneumatic MR25-1300-KSL-ATEX reversible stainless steel air motor is engineered for applications where both durability and safety compliance are non-negotiable. Constructed from corrosion-resistant stainless steel, this compact pneumatic motor is purpose-built for use in ATEX-rated hazardous areas, making it an essential component across chemical processing, offshore, pharmaceutical, and food-grade manufacturing facilities. With a maximum free speed of 1300 rpm and a maximum output power of 0.2 kW, this air motor delivers consistent, controlled performance suited to precision-driven tasks. A minimum starting torque of 3.2 Nm ensures reliable engagement under load, while the stall torque of 4.8 Nm provides the rotational strength needed to maintain operation through resistance-heavy cycles. The reversible functionality adds operational versatility, allowing the motor to suit a broader range of integration scenarios within automated and hand-held pneumatic tooling systems. As a certified ATEX air motor, the MR25-1300-KSL-ATEX meets the strict safety standards required for Zone 1 and Zone 2 environments, giving engineers and procurement teams confidence in both compliance and longevity. Whether integrated into custom pneumatic motor assemblies or deployed within air tools operating in sensitive industrial zones, this Chicago Pneumatic unit offers a dependable, low-maintenance solution for facilities that cannot afford downtime or safety compromise.Product Feature: Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max free speed range: 1300 rpm
- Max output power: 0.2 kW
- Minimum starting torque: 3.2 Nm
- Stall torque: 4.8 Nm
- Torque at max power: 2.4 Nm
- Air consumption at load: 5 l/s
- Air flow max power: 5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Stainless steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Safety: Index of protection (IP code)
- Output Spindle size: 10 mm
- Weight: 0.63 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
