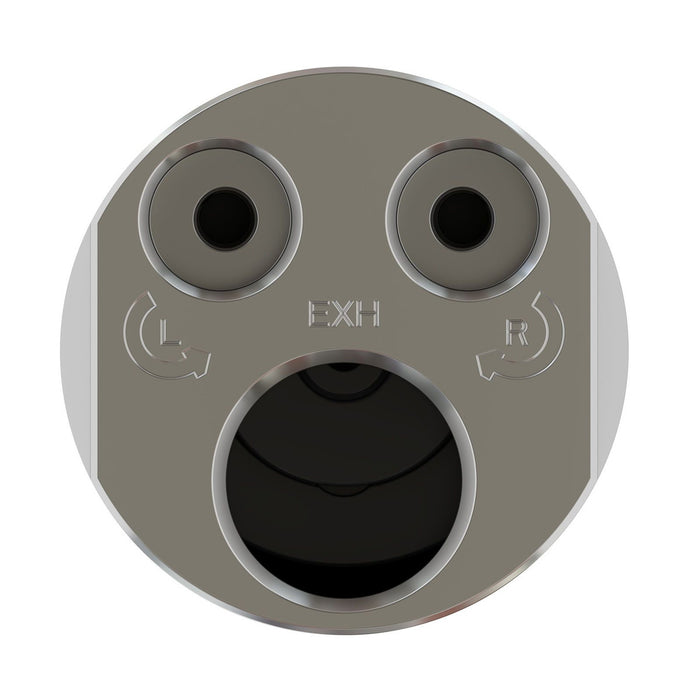

Chicago Pneumatic MR25-1300-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478394
The Chicago Pneumatic MR25-1300-KL-ATEX delivers reliable, explosion-proof performance in hazardous environments where standard pneumatic motors simply cannot operate safely. Engineered to meet ATEX certification requirements, this reversible vane air motor is purpose-built for industries such as oil and gas, chemical processing, and pharmaceutical manufacturing, where the risk of ignition demands uncompromising safety standards alongside consistent power output. Producing 160 W of power, this compact yet capable pneumatic motor operates efficiently on a 1/8-inch BSP air inlet, drawing an air consumption of just 5 l/s at load - the same rate as its maximum airflow for peak power delivery. The reversible functionality adds versatility to applications requiring bidirectional rotation, making it a practical choice for integration into automated machinery, conveyor systems, and custom-built pneumatic tooling assemblies. Unlike a typical air powered die grinder or handheld air tool, the MR25-1300-KL-ATEX is designed as a fixed or integrated drive unit, giving engineers and maintenance professionals a dependable rotary power source that performs consistently in both continuous and intermittent duty cycles. Its vane motor design ensures smooth torque delivery and straightforward serviceability, reducing downtime in critical production environments. Ideal for OEM equipment builders, plant engineers, and maintenance teams operating in Zone 1 or Zone 2 classified hazardous areas, this ATEX-rated air motor from Chicago Pneumatic pairs industry-leading safety credentials with the dependable performance that demanding industrial applications require.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5 l/s
- Air flow max power: 5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 1300 rpm
- Minimum starting torque: 3.2 Nm
- Stall torque: 4.8 Nm
- Torque at max power: 2.4 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
