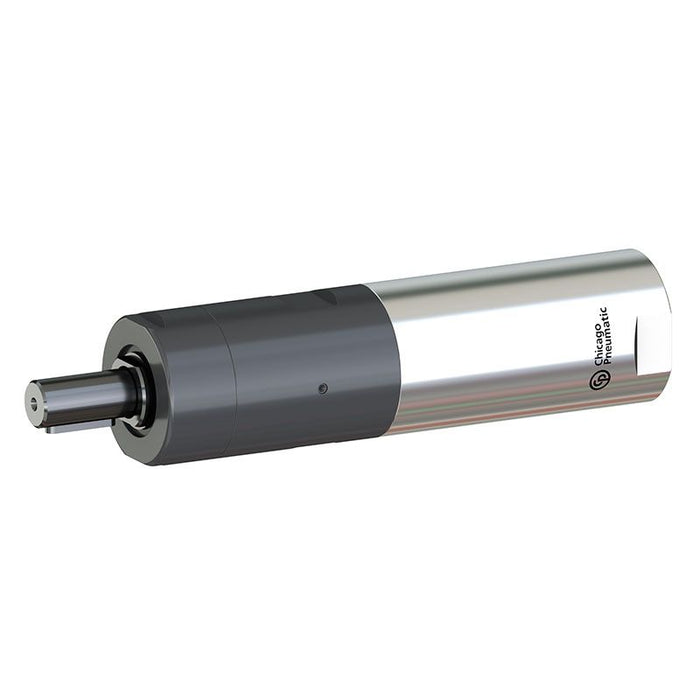

Chicago Pneumatic MR180-830-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479654
Delivering exceptional industrial performance where safety and power must coexist, the Chicago Pneumatic MR180-830-K-ATEX reversible air motor provides 1400 W of reliable output in environments where explosion risk makes conventional electric tools simply unsuitable. Engineered for demanding applications across oil and gas, chemical processing, and heavy manufacturing, this pneumatic motor carries full ATEX certification, ensuring compliance with the strictest hazardous area regulations without compromising on capability. Running at 830 RPM under load, this air powered die grinder motor offers smooth, controlled torque delivery that protects both the operator and the workpiece during precision tasks. The IP66 index of protection rating means the unit resists powerful water jets and heavy dust ingress, making it equally dependable in outdoor or wash-down environments. An air consumption of 31 l/s at maximum power ensures consistent performance throughout extended operational cycles, while the thoughtfully engineered air inlet thread size allows straightforward integration into existing pneumatic infrastructure. The reversible functionality adds genuine operational flexibility, enabling clockwise and counter-clockwise rotation to suit a wide range of assembly, grinding, and finishing applications. As a robust pneumatic motor built around the trusted Chicago Pneumatic standard for quality and durability, the MR180-830-K-ATEX is the go-to choice for maintenance teams and production engineers who need dependable air tools performing reliably in classified hazardous zones day after day. Product Features: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Index of protection (IP code): IP66
- Air consumption at load: 31 l/s
- Air flow max power: 31 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Max free speed range: 830 rpm
- Minimum starting torque: 37 Nm
- Stall torque: 58 Nm
- Torque at max power: 29 Nm
- Max output power: 1.4 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 2.9 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
