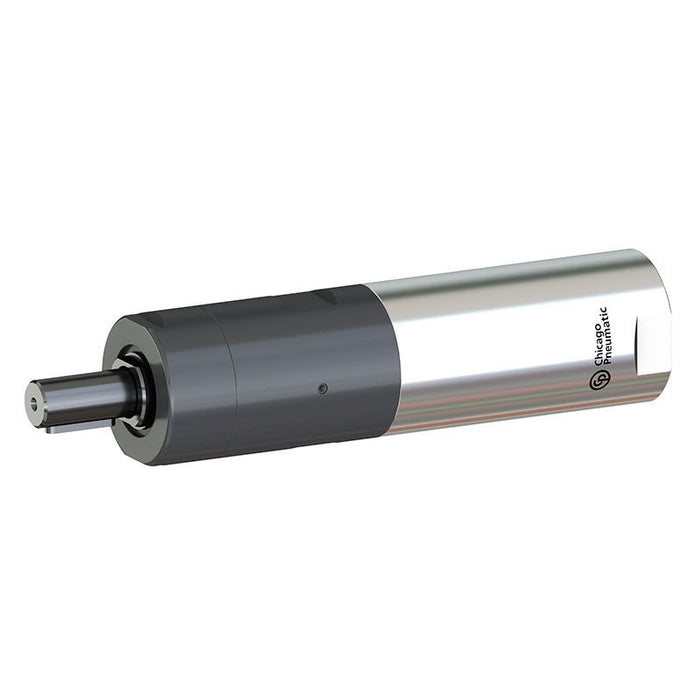

Chicago Pneumatic MR180-500-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479664
Engineered for demanding industrial environments where power, precision, and safety cannot be compromised, the Chicago Pneumatic MR180-500-K-ATEX reversible air motor delivers an impressive 1,400 watts of output power at a controlled 500 RPM, making it an exceptional choice for heavy-duty torque-sensitive applications. Certified to ATEX standards, this pneumatic motor is purpose-built for hazardous and explosive atmospheres, offering operators reliable performance where conventional electric motors simply cannot be used safely. Protected to IP66 rating, the unit resists powerful water jets and heavy dust ingress, ensuring consistent operation in harsh washdown environments and outdoor industrial settings. With an air consumption of 31 l/s at load and a matching maximum airflow of 31 l/s, this air motor maintains a precise, efficient power curve that integrates seamlessly into automated machinery, production lines, and custom pneumatic tooling systems. The reversible functionality further expands its versatility, allowing bidirectional operation across a wide range of mechanical drive applications. Compared to standard air tools such as an air powered die grinder or pneumatic die grinder, the MR180-500-K-ATEX operates on a much larger scale, functioning as a core drive unit rather than a handheld tool. Its robust construction and ATEX compliance make it ideally suited for oil and gas facilities, chemical processing plants, pharmaceutical manufacturing, and any site requiring certified explosion-proof pneumatic motor solutions. Product Features: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Index of protection (IP code): IP66
- Air consumption at load: 31 l/s
- Air flow max power: 31 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Max free speed range: 500 rpm
- Minimum starting torque: 62 Nm
- Stall torque: 96 Nm
- Torque at max power: 48 Nm
- Max output power: 1.4 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 2.9 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
