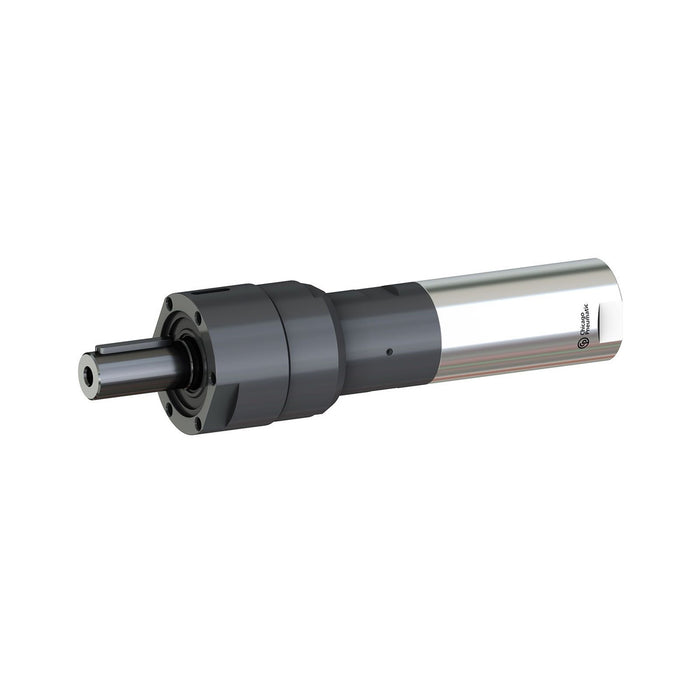

Chicago Pneumatic MR180-200-K-SI-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479704
Delivering exceptional rotational performance in the most demanding industrial environments, the Chicago Pneumatic MR180-200-K-SI-ATEX reversible vane air motor provides 1400 W of continuous power output, making it a reliable solution for facilities requiring certified explosion-proof pneumatic motor technology. Designed to meet rigorous ATEX certification standards, this air motor is engineered specifically for use in potentially explosive atmospheres, including petrochemical plants, refineries, and other hazardous locations where safety compliance is non-negotiable. The MR180-200-K-SI-ATEX operates with an air consumption at load of 31 l/s and achieves maximum power airflow at the same efficient 31 l/s, ensuring consistent performance without excessive compressed air waste. The 3/8-inch BSP air inlet thread provides straightforward integration into existing pneumatic systems, reducing installation complexity and downtime. As a reversible unit, it offers operational flexibility that fixed-direction motors simply cannot match, allowing engineers to adapt quickly to varying process requirements. Built on Chicago Pneumatic's proven vane motor platform, this pneumatic motor delivers smooth, controllable torque across its operating range, characteristics that are essential when precision matters as much as raw power. The robust construction supports extended service intervals even under continuous-duty conditions. This model is the preferred choice for driving mixers, conveyors, pumps, and agitators in classified hazardous zones, where the combination of ATEX-rated air tools technology and dependable high-wattage output ensures both operational efficiency and workforce safety.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 31 l/s
- Air flow max power: 31 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 200 rpm
- Minimum starting torque: 151 Nm
- Stall torque: 233 Nm
- Torque at max power: 117 Nm
- Max output power: 1.4 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 5.3 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
