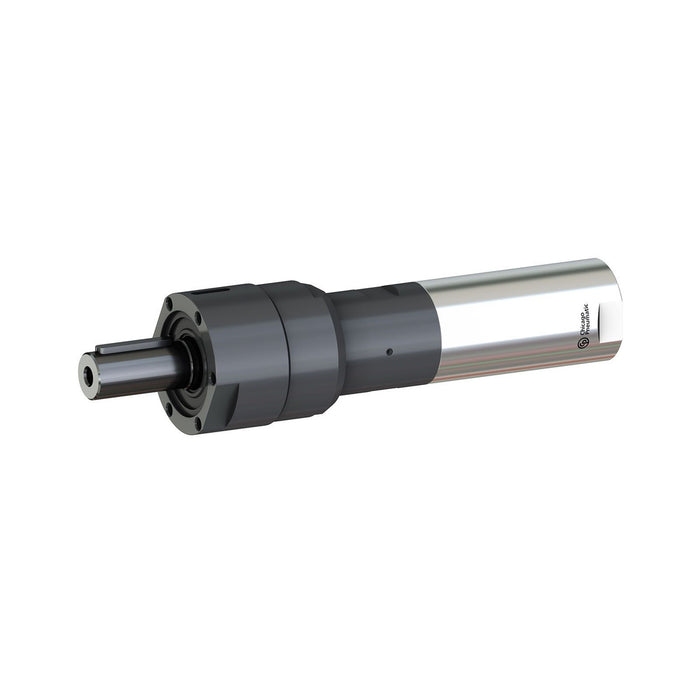

Chicago Pneumatic MR180-200-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479684
Delivering exceptional power output in hazardous environments, the Chicago Pneumatic MR180-200-K-ATEX reversible vane air motor offers 1400 W of reliable performance where electrical equipment simply cannot go. Engineered to ATEX certification standards, this pneumatic motor is purpose-built for explosive atmospheres including oil refineries, chemical processing plants, and offshore facilities, giving engineers and maintenance teams a dependable drive solution without compromise on safety or output. The MR180-200-K-ATEX operates at a maximum speed of 200 RPM and draws 31 l/s air consumption at load, matched by a maximum airflow of 31 l/s for consistent, sustained torque delivery. The 3/8-inch BSP air inlet thread ensures straightforward integration with standard industrial compressed air systems, reducing installation complexity and downtime. As a reversible unit, it supports bidirectional operation, adding versatility across a wide range of drive and actuator applications. Constructed with the precision and durability Chicago Pneumatic is known for across its range of professional air tools and pneumatic motors, this unit is well-suited to demanding continuous-duty cycles. Its robust vane motor design minimises maintenance requirements while maintaining consistent power delivery throughout extended operation. Whether driving conveyors, agitators, mixers, or specialist tooling in Zone 1 or Zone 2 classified areas, the Chicago Pneumatic MR180-200-K-ATEX is the trusted pneumatic motor choice for safety-critical industrial environments where performance and compliance must go hand in hand.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 31 l/s
- Air flow max power: 31 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 200 rpm
- Minimum starting torque: 151 Nm
- Stall torque: 233 Nm
- Torque at max power: 117 Nm
- Max output power: 1.4 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 5.1 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
