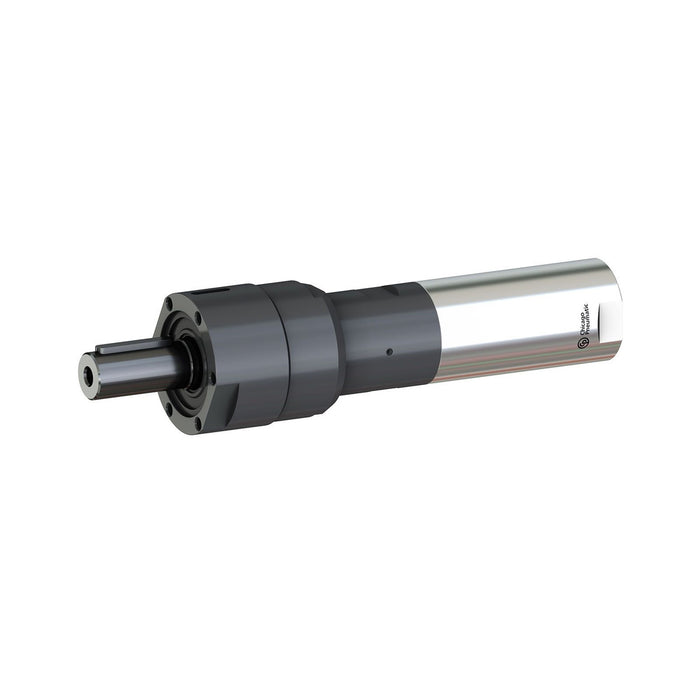

Chicago Pneumatic MR180-120-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479694
Delivering exceptional power in hazardous environments, the Chicago Pneumatic MR180-120-K-ATEX reversible vane air motor provides 1400 W of reliable output where safety and performance are equally non-negotiable. Engineered to meet ATEX certification standards, this pneumatic motor is purpose-built for use in explosive or flammable atmospheres, giving industrial operators confidence that their equipment won't compromise site safety. The MR180-120-K-ATEX draws on proven vane motor technology to deliver consistent rotational force with an air consumption at load of 31 l/s, matching the air flow required at maximum power output. Its 3/8-inch BSP air inlet thread ensures straightforward integration into standard compressed air systems commonly found across manufacturing, petrochemical, and offshore facilities. The reversible operation adds significant versatility, allowing the motor to drive applications in both rotational directions without mechanical adjustment. As a high-output air motor and pneumatic motor solution, it suits demanding OEM and MRO applications where electric motors pose ignition risks. The robust vane design offers excellent power-to-weight characteristics and requires minimal maintenance compared to electric alternatives, reducing long-term operational costs. Whether driving conveyors, mixers, actuators, or specialist air tools in classified zones, this unit performs with the durability and dependability that Chicago Pneumatic is renowned for. The MR180-120-K-ATEX is the ideal choice for engineers specifying safe, high-performance pneumatic drive solutions in Zone 1 and Zone 2 hazardous locations.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 31 l/s
- Air flow max power: 31 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 120 rpm
- Minimum starting torque: 249 Nm
- Stall torque: 382 Nm
- Torque at max power: 191 Nm
- Max output power: 1.4 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: h
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 5.1 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
