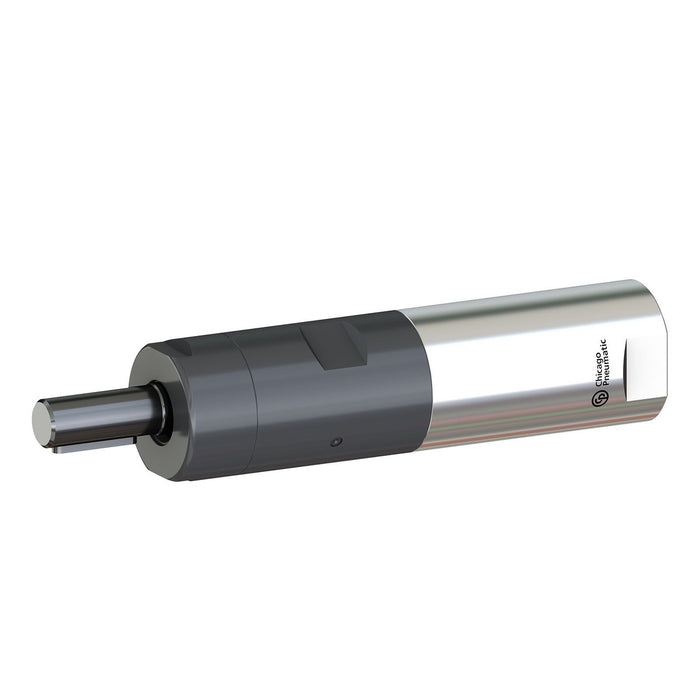

Chicago Pneumatic M84-900-K-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479174
The Chicago Pneumatic M84-900-K-ATEX delivers reliable, explosion-safe rotary power for demanding industrial environments where safety certification is non-negotiable. Engineered as a high-performance pneumatic motor, this non-reversible vane air motor produces a robust 840 W of continuous power output, making it an ideal solution for fixed-direction drive applications across manufacturing, processing, and hazardous-area installations. Rated for ATEX-compliant operation, the M84-900-K-ATEX is purpose-built for use in potentially explosive atmospheres, offering engineers and site operators the confidence that performance will never come at the cost of personnel safety. The unit draws an air consumption of 16 l/s at load, with maximum power airflow also rated at 16 l/s, ensuring predictable demand on compressed air systems. Connection is straightforward via a 3/8-inch BSP air inlet thread, allowing seamless integration into standard industrial pneumatic networks without additional adapters or complex plumbing. As a vane-type pneumatic motor, the design benefits from smooth torque delivery, low maintenance requirements, and inherent spark-free operation - characteristics that make air motor technology the preferred choice where electrical drives present unacceptable risk. The non-reversible configuration keeps the drivetrain simple and dependable for unidirectional machinery. This air motor is particularly well suited to powering conveyor systems, mixing equipment, and purpose-built air tools in chemical plants, refineries, offshore platforms, and any Zone-classified facility requiring certified, pneumatically driven solutions.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 900 rpm
- Minimum starting torque: 26 Nm
- Stall torque: 33 Nm
- Torque at max power: 16.5 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Clockwise
- Shaft loading code: e
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 16 mm
- Weight: 1.3 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
