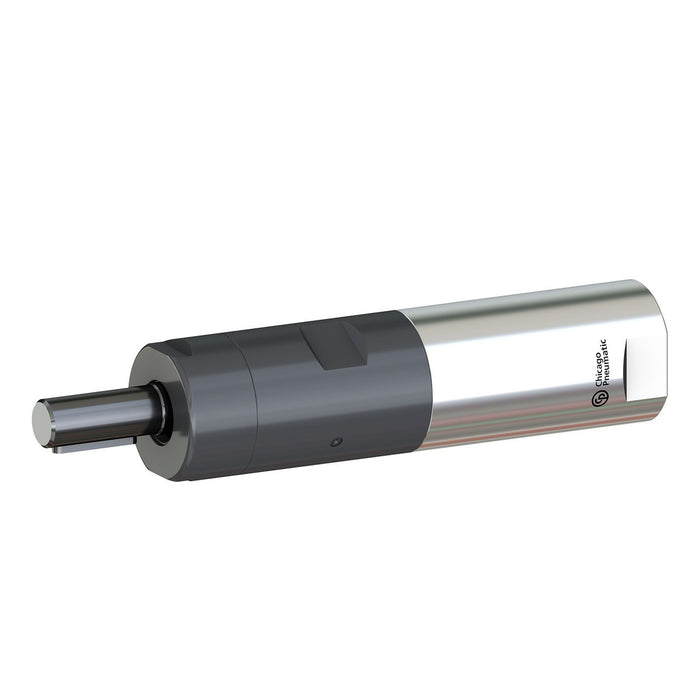

Chicago Pneumatic M84-6300-K-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479134
Delivering exceptional industrial performance in hazardous environments, the Chicago Pneumatic M84-6300-K-ATEX non-reversible vane air motor offers a powerful 840 W output with reliable, spark-free operation certified to ATEX standards. Designed for facilities where explosive atmospheres are a genuine concern, this pneumatic motor provides engineers and maintenance professionals with the confidence to work safely without compromising on productivity or power. The M84-6300-K-ATEX operates with an air consumption of 16 l/s at load, with maximum air flow at peak power also rated at 16 l/s, ensuring consistent, predictable performance across demanding duty cycles. The 3/8-inch BSP air inlet thread size makes integration straightforward within existing compressed air systems commonly found across manufacturing, chemical processing, and oil and gas facilities. As a non-reversible vane air motor, it delivers smooth, continuous rotational output that makes it well suited for driving equipment where controlled unidirectional force is essential. Constructed with the durability expected from Chicago Pneumatic air tools, this unit benefits from the brand's decades of engineering expertise in pneumatic technology. The vane design ensures efficient energy conversion from compressed air to mechanical power, reducing operational costs over extended use. Whether integrated into automated production lines, fitted to specialist pneumatic die grinder assemblies, or used as a standalone air motor in process equipment, the M84-6300-K-ATEX is the dependable choice for engineers operating in Zone 1 and Zone 2 classified hazardous locations.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 6300 rpm
- Minimum starting torque: 3.9 Nm
- Stall torque: 4.8 Nm
- Torque at max power: 2.4 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Clockwise
- Shaft loading code: e
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 16 mm
- Weight: 1.2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
