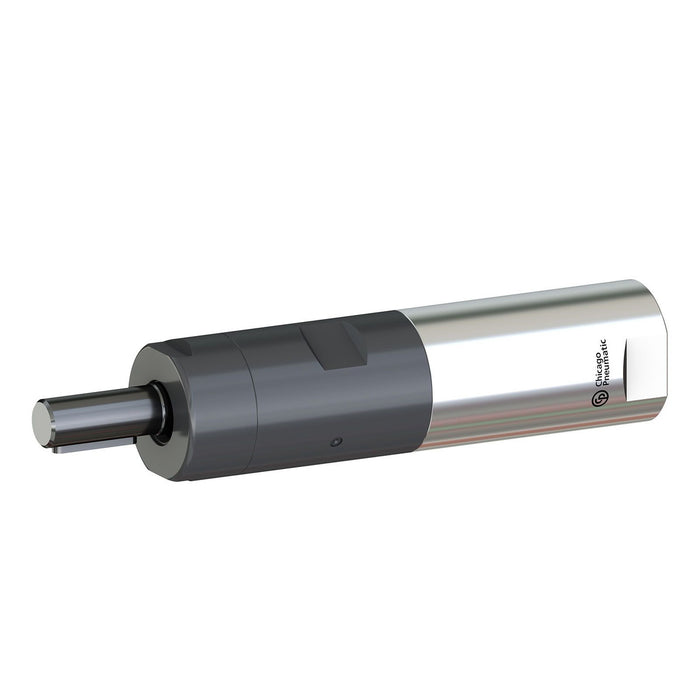

Chicago Pneumatic M84-540-K-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479184
Delivering consistent rotational power in environments where electrical equipment is simply not an option, the Chicago Pneumatic M84-540-K-ATEX stands out as a purpose-built pneumatic motor engineered specifically for hazardous area classifications. Rated at 840 W and designed as a non-reversible vane air motor, this unit offers dependable, single-direction torque output ideal for demanding industrial settings where ATEX certification is a mandatory requirement rather than a luxury. At the heart of its performance is an air consumption rate of 16 l/s at load, matched by a maximum air flow of 16 l/s at peak power - figures that reflect a well-balanced relationship between efficiency and output. The 3/8-inch BSP air inlet thread ensures broad compatibility with standard pneumatic infrastructure, making integration into existing workshop or plant setups straightforward without the need for additional adapters. As a heavy-duty pneumatic motor, the M84-540-K-ATEX is built to serve as the drive component in custom-engineered machinery, conveyor systems, automated production lines, and specialised air tools where spark-free operation is critical. Its vane motor architecture delivers smooth, continuous power transmission with low maintenance demands over extended operating cycles. This Chicago Pneumatic air motor is the preferred choice for process engineers, OEM machine builders, and maintenance teams operating across petrochemical, pharmaceutical, and mining industries where certified explosion-proof pneumatic motor solutions are non-negotiable for workplace safety compliance.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 540 rpm
- Minimum starting torque: 44 Nm
- Stall torque: 55 Nm
- Torque at max power: 27 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Clockwise
- Shaft loading code: e
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 16 mm
- Weight: 1.3 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
